| Nguồn gốc: | China |
| Hàng hiệu: | Helm Tower |
| Chứng nhận: | ISO9001 |
| Số mô hình: | MS/MSE05 |
| Số lượng đặt hàng tối thiểu: | 1 |
|---|---|
| Giá bán: | 300-400 USD |
| chi tiết đóng gói: | Wooden Case |
| Thời gian giao hàng: | 5 days |
| Điều khoản thanh toán: | L/C, T/T |
| Khả năng cung cấp: | 500 pcs/ month |
| Material: | 42CrMo | Size: | MS/MSE05 |
|---|---|---|---|
| Tolerance: | High accuracy | Type: | Hydraulic Motors |
| Product name: | Rotor Group | Color: | Silver |
| Điểm nổi bật: | Rotor Group Rotary Assembly,Hydraulic Motor Rotor Group,MS05 Motor Rotor Assembly |
||

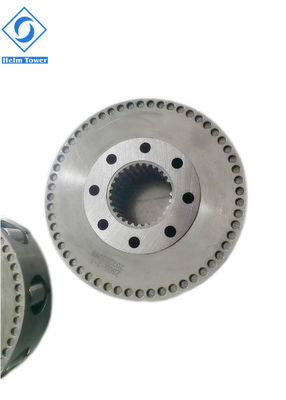

Motor Spare Parts Replacement Poclain MS05 MSE05 Rotor Group Rotary assembly
Product Features:
1) These are the rotor group for Poclain MS05 MSE05 Hydraulic Motor Spare Parts, and alll of them could be best replacement of the original Poclain MS05 MSE05 motors.
2) Include drive shaft, front cover, stator, rotor, rotor assembly , plunger piston, roller, distributor, rear cover, dynamic friction, static friction, checking cylinder, break plunger, cover plate break shaft, brake shaft etc.
| MS05 series parts list | |||
| DESCRIPTION | QTYS | DESCRIPTION | QTYS |
| drive shaft | 1 | rear cover | 1 |
| front cover | 1 | dynamic friction | 14 |
| stator | 1 | static friction | 15 |
| rotor | 1 | checking cylinder | 1 |
| plunger piston | 8 | break plunger | 1 |
| roller | 8 | cover plate | 1 |
| distributor | 1 | brake shaft | 1 |
Workshop View:
Quality Control:
