| MOQ: | 1 PCS |
| giá bán: | negotiable |
| standard packaging: | Standard Wooden Case |
| Delivery period: | 14 working days |
| payment method: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Capacity: | 750 units per month |

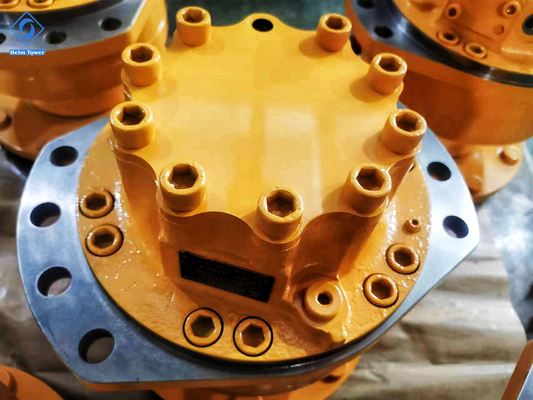

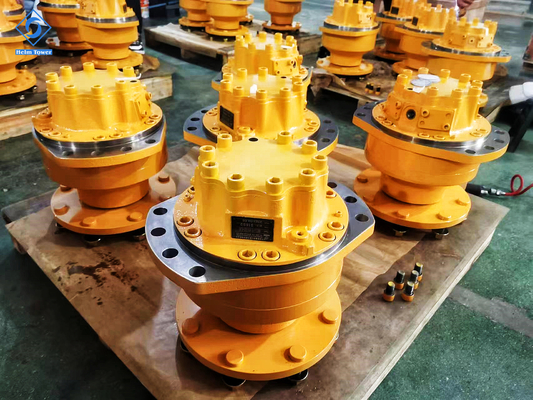

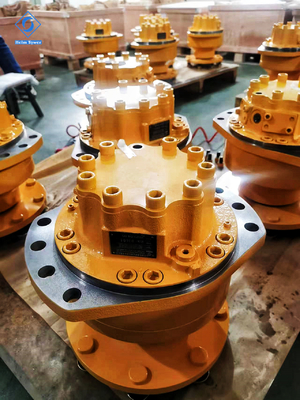

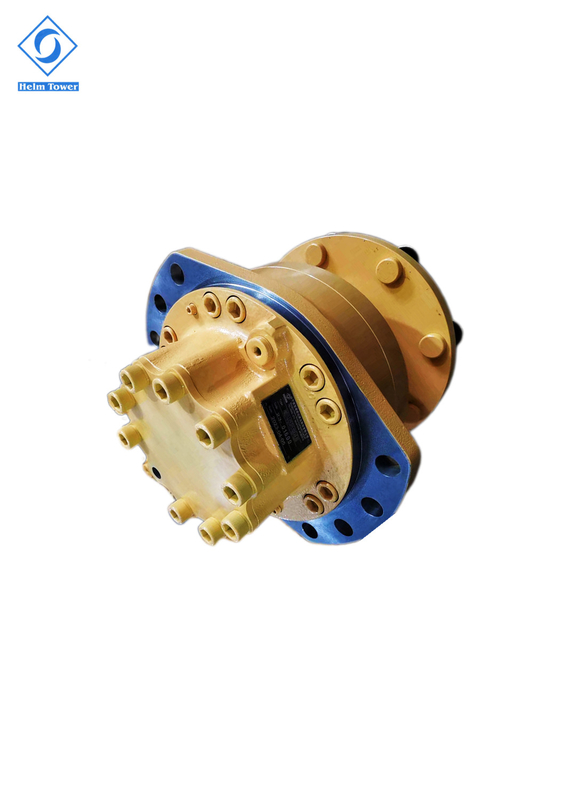

Poclain price hydraulic drive motor ms08 ms05 ms11 for sale
1) Radial piston type,low speed,high torque
2) Modular design, High efficiency
3) High pressure and smooth running even at very low speeds.
4) Permissible Radial and Axial load, Motor with multi-disc brake,
5) Controlled by motor displacement,which divided by single-displacement and double-displacement.The single-displacement is complete displacement output,and the double-displacement controlled by valve to carry out the speed by its complete displacement or half displacement output
Construction Machinery: Beam Carrier/Hoisting Machine, Cement Concrete Mixing Station, Cinder, Belt Conveyor
Farming Machinery: Spray Machine
Mining Machinery: Mini Road Header, Scraper, Heavy Duty Handling Car, Coal Mine Drill
Marine Machinery: Marine Deck Crane
MS11 Displacement Diagram
| Type | MS11-8 | MS11-9 | MS11-0 | MS11-1 | MS11-2 | |||||
| Displacement(ml/r) | Full | Semi | Full | Semi | Full | Semi | Full | Semi | Full | Semi |
| 837 | 418 | 943 | 471 | 1048 | 524 | 1147 | 573 | 1259 | 629 | |
| Max power(kw) | 44 | 29 | 44 | 29 | 44 | 29 | 44 | 29 | 44 | 29 |
|
Pressure discrepancy 10MPa Torque (N.m) |
1251 | 613 | 1409 | 391 | 1566 | 768 | 1714 | 840 | 1882 | 922 |
| Rated torque(N.m) | 3127 | 3524 | 3916 | 4286 | 4704 | |||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | |||||
| Max pressure(MPa) | 40 | 40 | 40 | 35 | 35 | |||||
| Rated speed(r/min) | 65 | 65 | 65 | 60 | 60 | |||||
| Speed range(r/min) | 0-160 | 0-160 | 0-160 | 0-150 | 0-150 | |||||
MS11 Connection Diagram
|
|
| MOQ: | 1 PCS |
| giá bán: | negotiable |
| standard packaging: | Standard Wooden Case |
| Delivery period: | 14 working days |
| payment method: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Capacity: | 750 units per month |
Poclain price hydraulic drive motor ms08 ms05 ms11 for sale
1) Radial piston type,low speed,high torque
2) Modular design, High efficiency
3) High pressure and smooth running even at very low speeds.
4) Permissible Radial and Axial load, Motor with multi-disc brake,
5) Controlled by motor displacement,which divided by single-displacement and double-displacement.The single-displacement is complete displacement output,and the double-displacement controlled by valve to carry out the speed by its complete displacement or half displacement output
Construction Machinery: Beam Carrier/Hoisting Machine, Cement Concrete Mixing Station, Cinder, Belt Conveyor
Farming Machinery: Spray Machine
Mining Machinery: Mini Road Header, Scraper, Heavy Duty Handling Car, Coal Mine Drill
Marine Machinery: Marine Deck Crane
MS11 Displacement Diagram
| Type | MS11-8 | MS11-9 | MS11-0 | MS11-1 | MS11-2 | |||||
| Displacement(ml/r) | Full | Semi | Full | Semi | Full | Semi | Full | Semi | Full | Semi |
| 837 | 418 | 943 | 471 | 1048 | 524 | 1147 | 573 | 1259 | 629 | |
| Max power(kw) | 44 | 29 | 44 | 29 | 44 | 29 | 44 | 29 | 44 | 29 |
|
Pressure discrepancy 10MPa Torque (N.m) |
1251 | 613 | 1409 | 391 | 1566 | 768 | 1714 | 840 | 1882 | 922 |
| Rated torque(N.m) | 3127 | 3524 | 3916 | 4286 | 4704 | |||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | |||||
| Max pressure(MPa) | 40 | 40 | 40 | 35 | 35 | |||||
| Rated speed(r/min) | 65 | 65 | 65 | 60 | 60 | |||||
| Speed range(r/min) | 0-160 | 0-160 | 0-160 | 0-150 | 0-150 | |||||
MS11 Connection Diagram
