| Nguồn gốc: | ZHEJIANG |
| Hàng hiệu: | Helm Tower Hydraulic |
| Chứng nhận: | ISO9001 |
| Số mô hình: | MCR10 |
| Số lượng đặt hàng tối thiểu: | 1 |
|---|---|
| Giá bán: | Negotiable |
| chi tiết đóng gói: | wooden case |
| Thời gian giao hàng: | 7-14 days |
| Điều khoản thanh toán: | L/C |
| Khả năng cung cấp: | 700 sets per month |
| Color: | Customized | Application: | Bobcat SSL |
|---|---|---|---|
| Pressure: | High Pressure Resistance | Delivery time: | 7-14days |
| Package: | Standard Wooden case | Material: | Steel |
| Điểm nổi bật: | Hydraulic Piston Mini Motor,Rexroth MCR10 Mini Motor,Bobcat Hydraulic Piston Motor |
||

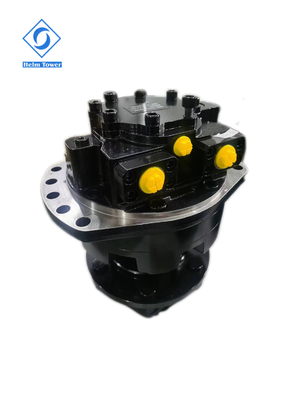

Rexroth MCR10 Hydraulic Piston Mini Motor For bobcat
| Code | HMCR10 | HMCRE10 | ||||
| Displacement Group | 0 | 1 | 2 | 0 | 1 | 2 |
| Displacement(ml/r) | 780 | 860 | 940 | 1120 | 1250 | 1340 |
| Theoretical torque at 10Mpa(N.m) | 1240 | 1367 | 1494 | 1780 | 1987 | 2130 |
| Rated speed(r/min) | 125 | 100 | 100 | 100 | 80 | 80 |
| Rated pressure(Mpa) | 25 | 25 | 25 | 25 | 25 | 25 |
| Rated torque(N.M) | 2560 | 2820 | 3090 | 3680 | 4110 | 4400 |
| Max.pressure(Mpa) | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 |
| Max.torque(N.m) | 3160 | 3480 | 3810 | 4540 | 5060 | 5430 |
| Speed range(r/min) | 0-215 | 0-195 | 0-180 | 0-150 | 0-135 | 0-125 |
| Max.power(kW) | 44 | 44 | 44 | 50 | 50 |
50 |
Application:
Mining Machinery: Coal Winning Machine,Road Header,Heavy Duty Handling Car, Coal Mine Drill
Engineering Machinery:Skid Steer Loader,Break Machine
