| Nguồn gốc: | Ningbo |
| Hàng hiệu: | Helm Tower |
| Chứng nhận: | ISO 9001 |
| Số mô hình: | MS02 MSE02 |
| Số lượng đặt hàng tối thiểu: | 1 PCS |
|---|---|
| Giá bán: | Negotiable |
| chi tiết đóng gói: | Standard Export Wooden Case |
| Thời gian giao hàng: | 15 working days |
| Điều khoản thanh toán: | L/C, T/T |
| Khả năng cung cấp: | 700 units per month |
| Type: | Piston motor | Speed: | 0-310 r/min |
|---|---|---|---|
| Material: | Steel | Warranty: | 1 Year |
| Condition: | New | Color: | Customized |
| Điểm nổi bật: | 310 r/min Hydraulic Piston Motor,Customized Hydraulic Piston Motor,Poclain High Torque Wheel Motor |
||

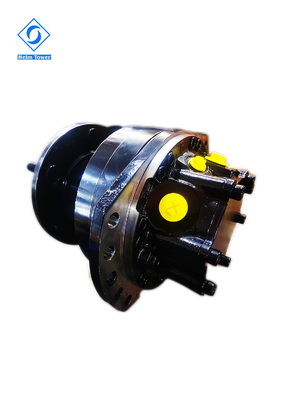

Poclain MS02 piston motor hydraulic high torque wheel motor bobcat t190
Features:
Poclain MS02 Hydraulic Motor
1). Radial piston type;
2). Adopt Imported Bearing and Oil Seal, etc.
3). Modular design, High efficiency, High pressure and smooth running even at very low speeds.
4). Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.
MS02 Displacement Diagram
| Code | HMS02 | HMSE02 | |||||
| Displacement Group | 8 | 0 | 1 | 2 | 0 | 1 | 2 |
| Displacement(ml/r) | 172 | 213 | 235 | 255 | 332 | 364 | 398 |
| Theoretical torque at 10Mpa(N.m) | 273 | 339 | 374 | 405 | 528 | 579 | 633 |
| Rated speed(r/min) | 200 | 200 | 160 | 160 | 160 | 125 | 100 |
| Rated pressure(Mpa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Rated torque(N.M) | 550 | 700 | 750 | 800 | 1100 | 1150 | 1300 |
| Max.pressure(Mpa) | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 |
| Max.torque(N.m) | 650 | 850 | 950 | 1000 | 1300 | 1450 | 1600 |
| Speed range(r/min) | 0-390 | 0-310 | 0-285 | 0-260 | 0-200 | 0-182 | 0-165 |
| Max.power(kW) |
Standard displacement is 18kW(HMSE02 22kW), variable displacement priority rotation 12kW(HMSE02 16.5kW), no priority is 9kW(HMSE02 11kW) |
||||||
Applications:
Mining Machinery:Coal Mine Drill, Heavy Duty Handling Car.
Engineering Machinery:Scavenging Machine, Aircraft Tractor, Beam Carrier/Hoisting Machine.
Farming Machinery: Mini Farming Vehicle, Ditcher.
MS02 Connection Dimension
Workshop View:
Quality Control:
