| Nguồn gốc: | Ningbo |
| Hàng hiệu: | Helm Tower |
| Chứng nhận: | ISO 9001 |
| Số mô hình: | MS50 |
| Số lượng đặt hàng tối thiểu: | 1 PCS |
|---|---|
| Giá bán: | Negotiable |
| chi tiết đóng gói: | Standard Export Wooden Case |
| Thời gian giao hàng: | 7-15 working days |
| Điều khoản thanh toán: | L/C, T/T |
| Khả năng cung cấp: | 1000 units per month |
| Type: | piston motor | Color: | Customized |
|---|---|---|---|
| Speed range: | 0-100 r/min | Torque range: | 13077-22463 N. m |
| Rated pressure: | 25MPa | Max pressure: | 40MPa |
| Warranty: | 1 Year | Application: | Agriculture/Engineering/Coal mining/Marine /Construction Machinery |
| Điểm nổi bật: | MS50 High Pressure Hydraulic Motor,Construction Poclain Hydraulic Motor,Mining High Pressure Hydraulic Motor |
||

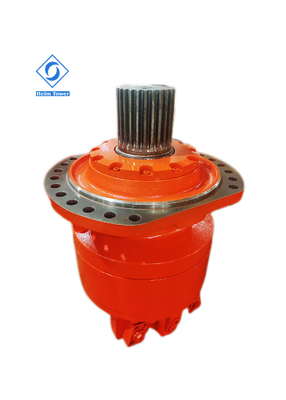

Helm Tower100% Replace Pocalin MS50 High Pressure Hydraulic Motor For Construction Mining Agriculture
Features:
POCLAIN MS50 Hydraulic Motor:
1). Radial piston type;
2). Adopt Imported Bearing and Oil Seal, etc.
3). Modular design, High efficiency, High pressure and smooth running even at very low speeds.
4). Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.
MS50 Displacement Diagram
| Type | MS50-8 | MS50-9 | MS50-0 | MS50-1 | MS50-2 | |||||
| Displacement(ml/r) | Full | Semi | Full | Semi | Full | Semi | Full | Semi | Full | Semi |
| 3500 | 1750 | 4008 | 2004 | 4996 | 1747 | 6012 | 3006 | |||
| Max power(kw) | 123 | 82 | 123 | 82 | 123 | 65 | 123 | 82 | ||
| Pressure discrepancy 10MPa Torque (N. m) |
5231 | 2562 | 5990 | 2935 | 7467 | 2558 | 8985 | 4402 | ||
| Rated torque(N. m) | 13077 | 14975 | 18667 | 22463 | ||||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | ||||||
| Max pressure(MPa) | 40 | 40 | 40 | 35 | ||||||
| Rated speed(r/min) | 40 | 40 | 40 | 35 | ||||||
| Speed range(r/min) | 0-100 | 0-100 | 0-100 | 0-90 |
||||||
Applications
Construction Machinery: Road Roller, Forging Manipulators, Bucket Wheel Machine.
Marine Machinery: Marine Deck Crane, Gantry Crane Equipment.
Mining Machinery: Heavy Duty Handling Car, Coal Mine Drill.
