| Nguồn gốc: | Ningbo |
| Hàng hiệu: | Helm Tower |
| Chứng nhận: | ISO 9001 |
| Số mô hình: | MS08 |
| Số lượng đặt hàng tối thiểu: | 1 PCS |
|---|---|
| Giá bán: | Negotiable |
| chi tiết đóng gói: | Standard Export Wooden Case |
| Thời gian giao hàng: | 7-15 working days |
| Điều khoản thanh toán: | L/C, T/T |
| Khả năng cung cấp: | 700 units per month |
| Type: | piston motor | Color: | customized |
|---|---|---|---|
| Speed: | 0-170 r/min | Torque: | 2343-3490 N.m |
| Rated pressure: | 25 MPa | Max. pressure: | 40 MPa |
| Điểm nổi bật: | 25 MPa Poclain Hydraulic Piston Motor,Bobcat Poclain Hydraulic Motor,MSE08 High Torque Motor |
||
MS poclain hydraulic motor high torque MSE08 for bobcat ZHEJIANG MOTOR SUPPLIER
1. Product Features:

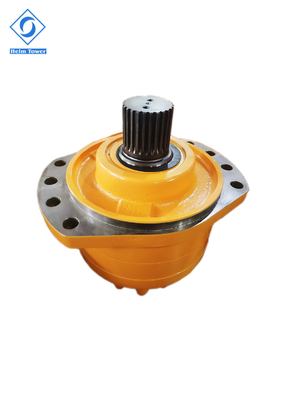

MS08 HYDRAULIC PISTON MOTOR
Description:
1)Radial piston type,low speed,high torque
2)Modular design, High efficiency
3)High pressure and smooth running even at very low speeds.
4)Permissible Radial and Axial load, Motor with multi-disc brake,
5)Controlled by motor displacement,which divided by single-displacement and double-displacement.The single-displacement is complete displacement output,and the double-displacement controlled by valve to carry out the speed by its complete displacement or half displacement output
Application:
As revolution mechanism of hydraulic system, MS08 hydraulic piston motor used for
Loader digger,milling machine,Mining machinery, , construction machinery, agriculture machinery, shipping port equipment, etc..
|
Type Displacement |
MS08-8 | MS08-9 | MS08-0 | MS08-1 | MS08-2 | |||||
| Full/Semi | Full/Semi | Full/Semi | Full/Semi | Full/Semi | ||||||
| Displacement(ml/r) | 627 | 313 | 702 | 351 | 780 | 390 | 857 | 428 | 934 | 467 |
| Max power(kw) | 36 | 24 | 36 | 24 | 36 | 24 | 36 | 24 | 36 | 24 |
|
Pressure discrepancy 10MPa Torque (N.m) |
937 | 459 | 1049 | 514 | 1166 | 571 | 1281 | 628 | 1396 | 684 |
| Rated torque(N.m) | 2343 | 2623 | 2914 | 3202 | 3490 | |||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | |||||
| Max pressure(MPa) | 40 | 40 | 40 | 35 | 35 | |||||
| Rated speed(r/min) | 70 | 70 | 70 | 65 | 65 | |||||
| Speed range(r/min) | 0-170 | 0-170 | 0-170 | 0-155 | 0-140 | |||||
Hydraulic Piston MS08 / MSE08 Poclain Motor
Fetures:
Radial piston type
Excellent starting characteristics
High power density
Optional mounting position
Motor with multi-disc brake (holding brake)
Adopt Imported Bearing and Oil Seal, etc
Modular design, High efficiency, High pressure tolerance and smooth running even at very low speed
Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control
Application:
Construction: road building and maintenance, earth moving, finishing, drilling, trenching, recycling, mining and boring machines.
Agriculture: combine and others specialty harvesters, sprayers, forestry equipment,
Handling: forklift trucks, aerial work platforms, conveyors, aircraft loading equipment,
Industry: process, paper, foundry, food.
Marines: fishing, harbor,
Transportation: material, heavy duty, on-highway.
Packaging
1) By air: Anti-rust treatment + suitable carton box + outer carton box + packing belt.
2) By sea: Anti-rust treatment + suitable carton box + wooden box + metal belt.
3) As the client's requirement.
Shipping
urgent & small gross weight by air
big gross weight by sea
