| Nguồn gốc: | Ningbo |
| Hàng hiệu: | Helm Tower |
| Chứng nhận: | ISO 9001 |
| Số mô hình: | MS05 MSE05 |
| Số lượng đặt hàng tối thiểu: | 1 PCS |
|---|---|
| Giá bán: | Negotiable |
| chi tiết đóng gói: | Standard Export Wooden Case |
| Thời gian giao hàng: | 15 working days |
| Điều khoản thanh toán: | L/C, T/T |
| Khả năng cung cấp: | 700 units per month |
| Type: | Piston motor | Color: | Customized |
|---|---|---|---|
| Speed: | 0-190 r/min | Rated pressure: | 25 MPa |
| Warranty: | 1 Year | Condition: | New |
| Điểm nổi bật: | Mse05 Hydraulic Piston Motor,Road Header Hydraulic Piston Motor,Replace Poclain Radial Piston Motor |
||

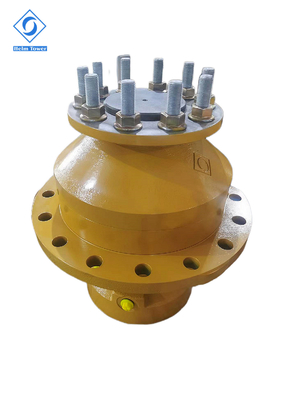

Ms05 Mse05 Hydraulic Piston Motor For Road Header 100%Replace Poclain
MS05 Displacement Diagram
|
Type Displacement |
MS05-8 | MS05-9 | MS05-0 | MS05-1 | MS05-2 | |||||
| Full/Semi | Full/Semi | Full/Semi | Full/Semi | Full/Semi | ||||||
| Displacement(ml/r) | 376 | 188 | 468 | 234 | 514 | 257 | 560 | 280 | ||
| Max power(kw) | 25 | 17 | 25 | 17 | 25 | 17 | 25 | 17 | ||
|
Pressure discrepancy 10MPa Torque (N.m) |
562 | 275 | 699 | 343 | 768 | 376 | 837 | 410 | ||
| Rated torque(N.m) | 1405 | 1749 | 1921 | 2092 | ||||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | ||||||
| Max pressure(MPa) | 40 | 40 | 35 | 35 | ||||||
| Rated speed(r/min) | 90 | 90 | 85 | 80 | ||||||
| Speed range(r/min) | 0-200 | 0-200 | 0-190 | 0-180 | ||||||
Application:
Engineering Machinery: Cinder,Skid steer loader, Explosion- proof Forklift,Forklift,Beam Carrier/Hoisting Machine.
Farming Machinery: Mini Farming Vehicle, Combine Harvesters and Cotton Pickers.
Mining Machinery: Scraper, Road Header, Heavy Duty Handling Car, Coal Mine Drill.
Special Vehicles: Fire Engine.
Workshop View:
Quality Control:
