| Nguồn gốc: | CHINA |
| Hàng hiệu: | Helm Tower |
| Chứng nhận: | ISO 9001 |
| Số mô hình: | MS08 MSE08 |
| Số lượng đặt hàng tối thiểu: | 1 |
|---|---|
| Giá bán: | Negotiable |
| chi tiết đóng gói: | Standard Export Wooden Case |
| Thời gian giao hàng: | 7-15 working days |
| Điều khoản thanh toán: | L/C, T/T |
| Khả năng cung cấp: | 1000 units per month |
| Type: | Piston motor | Color: | Customized |
|---|---|---|---|
| Speed: | 0-170 r/min | Torque: | 2343-3490 N.m |
| Rated pressure: | 25 MPa | Condition: | New |
| Điểm nổi bật: | Agricultural Machinery Radial Piston Motor,Radial Piston Hydraulic Motor MSE08,Hydraulic MS Poclain Drive Motor |
||

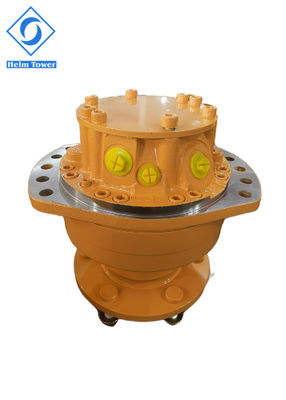

Poclain MS series MS08 MSE08 Hydraulic Drive Motor For Agricultural Machinery
Features:
MS08 series hydraulic motor:
This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.
It is widely applied in Construction Machinery( skid steer loader,down-the-hole drill,rotary drill,mini and midi excavator,mixer truck, cutting machine), Mining Machinery(road header, scraper, heavy duty handing car, coal mine drill), Marine Machinery(gantry crane), etc.
MS08 Displacement Diagram
|
Type Displacement |
MS08-8 | MS08-9 | MS08-0 | MS08-1 | MS08-2 | |||||
| Full/Semi | Full/Semi | Full/Semi | Full/Semi | Full/Semi | ||||||
| Displacement(ml/r) | 627 | 313 | 702 | 351 | 780 | 390 | 857 | 428 | 934 | 467 |
| Max power(kw) | 36 | 24 | 36 | 24 | 36 | 24 | 36 | 24 | 36 | 24 |
|
Pressure discrepancy 10MPa Torque (N.m) |
937 | 459 | 1049 | 514 | 1166 | 571 | 1281 | 628 | 1396 | 684 |
| Rated torque(N.m) | 2343 | 2623 | 2914 | 3202 | 3490 | |||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | |||||
| Max pressure(MPa) | 40 | 40 | 40 | 35 | 35 | |||||
| Rated speed(r/min) | 70 | 70 | 70 | 65 | 65 | |||||
| Speed range(r/min) | 0-170 | 0-170 | 0-170 | 0-155 | 0-140 | |||||
Applications:
Engineering Machinery: Road Roller, Beam Carrier/Hoisting Machine, Milling Machine, Backhoe loader, Cinder.
Farming Machinery: Spray Machine.
Mining Machinery: Road Header, Scraper, Heavy Duty Handing Car, Excavator, Coal Mine Drill.
Special Vehicles: Fire Engine.
Forest Machinery: Stumper, Loader, Forest Felling Machine.
MS08 Connection Dimension
Workshop View:
Quality Control:
