| Nguồn gốc: | China |
| Hàng hiệu: | Helm Tower |
| Chứng nhận: | ISO9001 |
| Số mô hình: | HDC50 |
| Số lượng đặt hàng tối thiểu: | Negotiation |
|---|---|
| Giá bán: | Negotiable |
| chi tiết đóng gói: | Export plywood case |
| Thời gian giao hàng: | 8 working days |
| Điều khoản thanh toán: | T/T, L/C |
| Khả năng cung cấp: | 100 pcs per month |
| Model: | HDC50 | Max. Pressure: | 31.5 Mpa |
|---|---|---|---|
| Color: | Customized | Width: | 1350 mm |
| Teeth: | 48 Pieces | Displacement: | 3500 ml/r; 4008 ml/r; 4997 ml/r; 6011 ml/r |
| Max. Power: | 140 Kw | Rated Pressure: | 25 Mpa |
| Max. Torque: | 27000 N.m | Speed Range: | 92-148 rpm |
| Weight: | 1500KGS | Suitable range: | Excavator 35-45 Ton |
| Điểm nổi bật: | Hydraulic Rotary Drum Cutter,Low Noise Rotary Drum Cutter,HDC50 Excavator Hydraulic Drum Cutter |
||

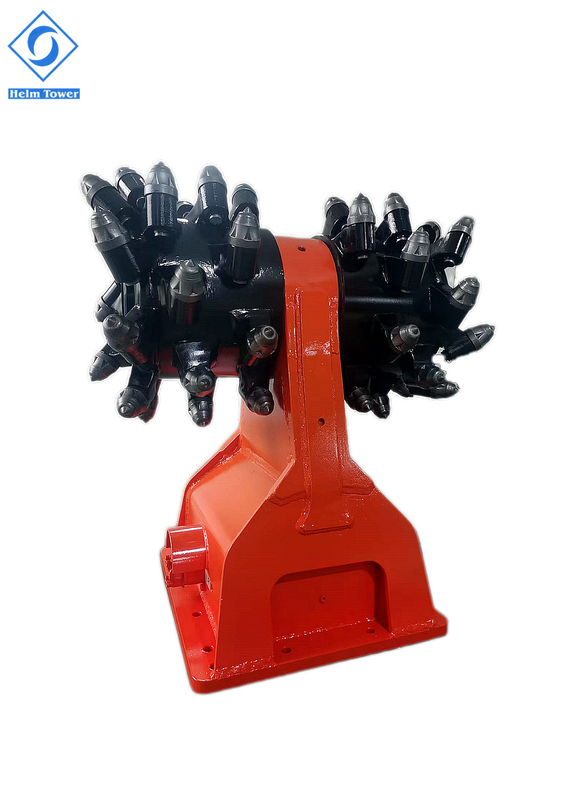

New Hydraulic Rotary Drum Cutter HDC50,27000 N.m Low Noise For Excavator
Features:
Hydraulic Rotary Drum Cutter:
1) Low shake, low noise, low cost.
2) Construction safety, high efficiency, small particle milling dug directly when the backfill.
3) Flexible, according to operating environment, the replacement the different milling dig cutter, milling ditch dug round rock saws disk, etc.Replacement is simple and convenient.
4) Simple installation and maintenance of economic, efficient alternative to the bucket, hammer and other tools, great fun and a strong feeling of power to the new are under construction.
Specification:
|
Code
|
HDC50-7
|
HDC50-8
|
HDC50-0
|
HDC50-1
|
|
Displacement(m/r)
|
3500
|
4008
|
4997
|
6011
|
|
Max.power(KW)
|
140
|
140
|
140
|
140
|
|
Rated pressure(MPa)
|
25
|
25
|
25
|
25
|
|
Max pressure(MPa)
|
31.5
|
31.5
|
31.5
|
31.5
|
|
Rated torque N.m(25MPa)
|
12500
|
14300
|
17800
|
21500
|
|
Max torque N.m(31.5MPa)
|
15760
|
18000
|
22500
|
27000
|
|
Rated speed(rpm)
|
80
|
80
|
63
|
50
|
|
Max speed(rpm)
|
148
|
138
|
111
|
92
|
|
Teeth number
|
60
|
|||
|
Weight(Kg)
|
1800
|
|||
|
Suitable range
|
Suitable Excavator 35-60 ton
|
|||
Applications:
1) Cutting of trenches and shafts in hard ground.
2) Trimming of concrete and asphalt.
3) Trimming the surface of secant bored piles.
4) Cutting of tunnel profiles.
5) Any kind of rock excavation.
6) Removing stumps and roots of trees.
Workshop View:
Quality Control:
