| Nguồn gốc: | CHINA |
| Hàng hiệu: | Helm Tower |
| Chứng nhận: | ISO 9001 |
| Số mô hình: | MSE02 |
| Số lượng đặt hàng tối thiểu: | 1 |
|---|---|
| Giá bán: | Negotiable |
| chi tiết đóng gói: | Wooden Case |
| Thời gian giao hàng: | 15 days |
| Điều khoản thanh toán: | L/C, T/T |
| Khả năng cung cấp: | 700 units per month |
| Type: | Hydraulic Drive Motor | Color: | Customized |
|---|---|---|---|
| Speed: | 160 r/min | Torque: | 1100-1300 N.m |
| Condition: | New | Application: | Skid Steer Loader |
| Điểm nổi bật: | MSE02 Skid Steer Hydraulic Wheel Motor,Wheel Radial Piston Hydraulic Motor,Hydraulic Drive Motor For Skid Steer |
||

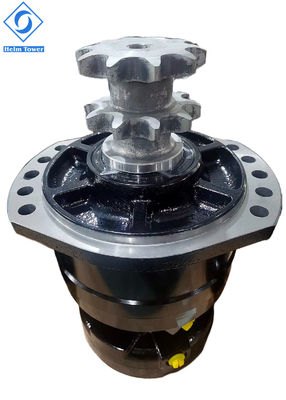

Poclain MS series Wheel MSE02 Hydraulic Gear Motor Sprocket Motor For Skid Steer Loader
Features:
Poclain MS02 Hydraulic Motor
1). Radial piston type;
2). Adopt Imported Bearing and Oil Seal, etc.
3). Modular design, High efficiency, High pressure and smooth running even at very low speeds.
4). Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.
MS02 Displacement Diagram
| Code | HMS02 | HMSE02 | |||||
| Displacement Group | 8 | 0 | 1 | 2 | 0 | 1 | 2 |
| Displacement(ml/r) | 172 | 213 | 235 | 255 | 332 | 364 | 398 |
| Theoretical torque at 10Mpa(N.m) | 273 | 339 | 374 | 405 | 528 | 579 | 633 |
| Rated speed(r/min) | 200 | 200 | 160 | 160 | 160 | 125 | 100 |
| Rated pressure(Mpa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Rated torque(N.M) | 550 | 700 | 750 | 800 | 1100 | 1150 | 1300 |
| Max.pressure(Mpa) | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 |
| Max.torque(N.m) | 650 | 850 | 950 | 1000 | 1300 | 1450 | 1600 |
| Speed range(r/min) | 0-390 | 0-310 | 0-285 | 0-260 | 0-200 | 0-182 | 0-165 |
| Max.power(kW) |
Standard displacement is 18kW(HMSE02 22kW), |
||||||
Applications:
Mining Machinery:Coal Mine Drill, Heavy Duty Handling Car.
Engineering Machinery:Scavenging Machine, Aircraft Tractor, Beam Carrier/Hoisting Machine.
Farming Machinery: Mini Farming Vehicle, Ditcher.
MS02 Connection Dimension
Workshop View:
Quality Control:
