| Nguồn gốc: | Ningbo |
| Hàng hiệu: | Helm Tower |
| Chứng nhận: | ISO 9001 |
| Số mô hình: | MSE05 |
| Số lượng đặt hàng tối thiểu: | 1 |
|---|---|
| Giá bán: | 850 USD |
| chi tiết đóng gói: | Standard Export Wooden Case |
| Thời gian giao hàng: | 7 working days |
| Điều khoản thanh toán: | L/C, T/T |
| Khả năng cung cấp: | 1000 units per month |
| Type: | Hydraulic Drive Motor | Color: | customized |
|---|---|---|---|
| Speed Range: | 0-190 r/min | Max.Torque: | 2030-3300 N.m |
| Rated pressure: | 25 MPa | Max. pressure: | 40 MPa |
| Điểm nổi bật: | MSE05 Poclain Drive Motor,Farming Variable Hydraulic Motor,High Torque Radial Piston Hydraulic Motor |
||

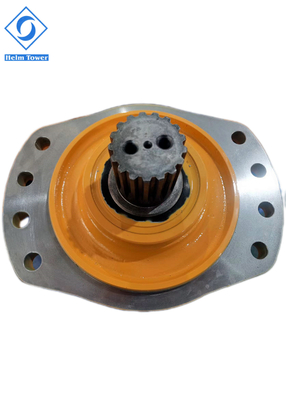

Hydraulic Drive Motor MSE05 Motor For Poclain 25Mpa Rated Pressure
Features:
This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.
It is widely applied in mining machinery( coal mine drill, heavy duty handling car), construction machinery(scavenging machine, aircraft tractor), farming machinery( mini farming vehicle, ditcher), etc.
MSE05
| Displacement Group | 8 | 0 | 1 | 2 | 3 |
| Displacement (ml/r) | 530 | 625 | 688 | 750 | 820 |
| Theoretical Torque at 10Mpa (N.m) | 843 | 994 | 1094 | 1193 | 1304 |
| Rated Speed (r/min) | 100 | 100 | 100 | 80 | 80 |
| Rated Pressure (Mpa) | 25 | 25 | 25 | 25 | 25 |
| Rated Torque (N.m) | 1700 | 2050 | 2250 | 2450 | 2650 |
| Max. Pressure (Mpa) | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 |
| Max. Torque (N.m) | 2100 | 2500 | 2750 | 3000 | 3300 |
| Speed Range (r/min) | 0-160 | 0-160 | 0-160 | 0-125 | 0-125 |
| Max. Power (kw) |
Standard displacement is 29KW,variable displacement priority rotation 19KW,no priority is 15KW |
||||
Application:
Engineering Machinery: Cinder,Skid steer loader, Explosion- proof Forklift,Forklift,Beam Carrier/Hoisting Machine.
Farming Machinery: Mini Farming Vehicle, Combine Harvesters and Cotton Pickers.
Mining Machinery: Scraper, Road Header, Heavy Duty Handling Car, Coal Mine Drill.
Special Vehicles: Fire Engine.
Workshop View:
Quality Control:
