Hydraulic Radial Piston Motor MS08 MSE08 For Agricultural Machinery

Thông tin chi tiết sản phẩm:

Place of Origin:	China
Hàng hiệu:	Helm Tower Hydraulic
Chứng nhận:	ISO9001:2008
Model Number:	MS08 MSE08

Thanh toán:

Minimum Order Quantity:	1
Packaging Details:	Wooden case
Delivery Time:	7 days
Payment Terms:	T/T, L/C
Supply Ability:	1000 sets per month

Tiếp xúc

Chi tiết sản phẩm

Warranty:	1 year	Color:	Customized
Type:	Hydraulic piston motor	Package:	Wooden case
Feature:	Low speed high torque	Rated pressure:	25 Mpa
Max pressure:	31.5 Mpa	Application:	Agricultural Machinery
Làm nổi bật:	Hydraulic Radial Piston Motor Customized , Agricultural Machinery Hydraulic Radial Piston Motor

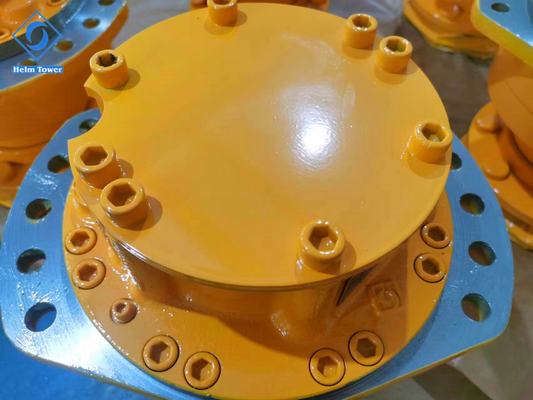

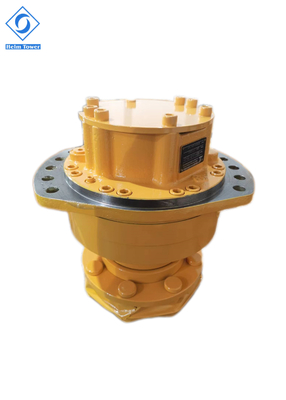

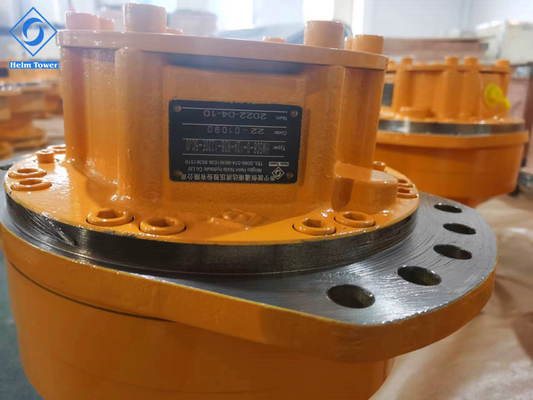

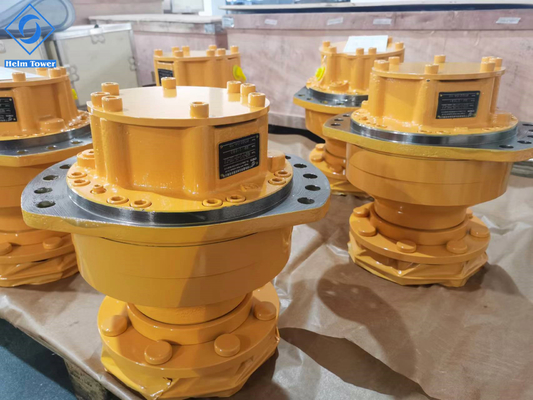

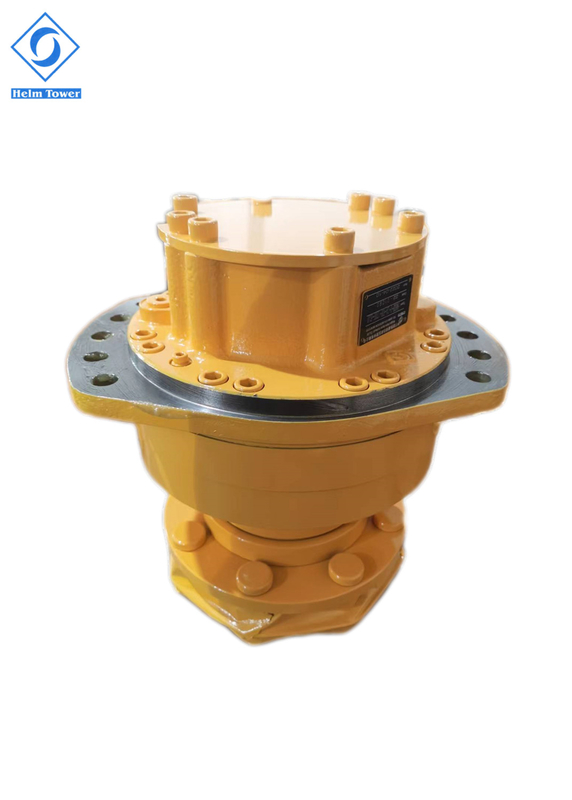

Hydraulic Radial Piston Motor MS08 MSE08 For Agricultural Machinery

MS08 Hydraulic Piston Motor:

The MS/MSE series motor can be added all kinds of hydraulic valves, mechanical brake, wheel output shaft and other components, motor can make a double displacement, multi-functions collocation can meet the needs of users in various fields.

The MS/MSE hydraulic motor is widely used in shearer, skid steer loaders, DTH drill, rotary drilling ilg, small road header, mixer, cutting machine, heavy duty handling car,cavenging machine, aircraft tractor, beam carrier,hoisting machineport crane,boring machine, scraper, mini farming vehicle, ditcher,heavy-duty truck and coal mine drilling machine.

Type Displacement	MS08-8		MS08-9		MS08-0		MS08-1		MS08-2
	Full/Semi		Full/Semi		Full/Semi		Full/Semi		Full/Semi
Displacement(ml/r)	627	313	702	351	780	390	857	428	934	467
Max power(kw)	36	24	36	24	36	24	36	24	36	24
Pressure discrepancy 10MPa Torque (N.m)	937	459	1049	514	1166	571	1281	628	1396	684
Rated torque(N.m)	2343		2623		2914		3202		3490
Rated pressure(MPa)	25		25		25		25		25
Max pressure(MPa)	40		40		40		35		35
Rated speed(r/min)	70		70		70		65		65
Speed range(r/min)	0-170		0-170		0-170		0-155		0-140

Our advantages:

1).High performance: our motor is very close to Poclain original motors, even sometimes be superior to originals.
2). Interchangeable: our complete motor and spare parts can well replace the originals.
3).Reasonable price: our price much lower than Poclain original motors.
4).Fast delivery time: almost spare parts have stock, regular motor lead time within 10 days
5). we have 12 months' quality warranty, and within warranty time ,all repairment are FREE of charge.
