| Place of Origin: | CHINA |
| Hàng hiệu: | Helm Tower Hydraulic |
| Chứng nhận: | ISO9001 |
| Model Number: | MCR5 MCRE05 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | wooden case |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 sets per month |
| Warranty: | 1 year | Color: | Customized |
|---|---|---|---|
| Delivery time: | 7 days | Package: | Wooden case |
| Rated pressure: | 25 Mpa | Rated speed: | 0-160 r/min |
| Certificate: | ISO9001 | Application: | Agriculture/Coal mining/Marine /Construction Machinery |
| Làm nổi bật: | Replace Rexroth Low Speed Hydraulic Motor,MCR05 High Torque Hydraulic Motor,MCRE05 High Torque Hydraulic Motor |
||

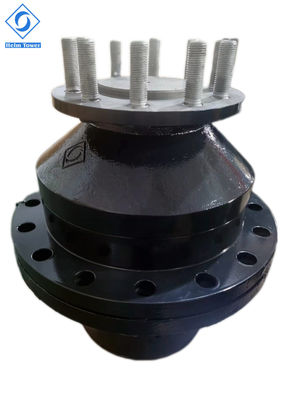

Low Speed High Torque Hydraulic Motor Replace Rexroth MCR05 MCRE05
Product Features:
MCR05 Hydraulic Wheel Motor:
1) Incurve radial piston type.
2) Designed in control modules, combine freely.
3) High efficiency, High pressure, low noise.
4) Radial piston, Low speed, High torque.
5) Application:
Mining Machinery: Coal Winning Machine, Road Header, Heavy Duty Handling Car, Coal Mine Drill.
Engineering Machinery: Skid Steer Loader, Break Machine.
| Code | MCR05 | |||
| Displacement Group | 8 | 0 | 1 | 2 |
| Displacement(ml/r) | 380 | 470 | 520 | 565 |
| Theoretical torque at 10 MPa(N.m) | 604 | 747 | 826 | 890 |
| Rated speed(r/min) | 160 | 125 | 125 | 125 |
| Rated pressure(Mpa) | 25 | 25 | 25 | 25 |
| Rated torque(N.m) | 1240 | 1540 | 1700 | 1850 |
| Max pressure(Mpa) | 31.5 | 31.5 | 31.5 | 31.5 |
| Max torque(N.m) | 1540 | 1900 | 2100 | 2290 |
| Speed range(r/min) | 0-475 | 0-385 | 0-350 | 0-320 |
| Max power(kW) | 29 | |||
| Code | MCRE05 | |||
| 0Displacement Group | 9 | 0 | 1 | 2 |
| Displacement(ml/r) | 620 | 680 | 750 | 820 |
| Theoretical torque at 10MPa(N.m) | 985 | 1080 | 1192 | 1302 |
| Rated speed(r/min) | 125 | 100 | 100 | 100 |
| Rated pressure(Mpa) | 25 | 25 | 25 | 25 |
| Rated torque(N.m) | 2030 | 2230 | 2460 | 2690 |
| Max pressure(Mpa) | 31.5 | 31.5 | 31.5 | 31.5 |
| Max torque(N.m) | 2510 | 2750 | 3040 | 3320 |
| Speed range(r/min) | 0-290 | 0-265 | 0-240 | 0-220 |
| Max power(kW) | 35 | |||
