| Nguồn gốc: | CHINA |
| Hàng hiệu: | Helm Tower Hydraulic |
| Chứng nhận: | ISO9001 |
| Số mô hình: | MS11 |
| Số lượng đặt hàng tối thiểu: | 1 |
|---|---|
| chi tiết đóng gói: | wooden case |
| Thời gian giao hàng: | 7-15 days |
| Điều khoản thanh toán: | L/C, T/T |
| Khả năng cung cấp: | 1000 sets per month |
| Warranty: | 1 year | Color: | Follow customer's requirement |
|---|---|---|---|
| Application: | Construction/Agriculture/Mining/Marine Machinery | Pressure: | 25 Mpa |
| Delivery time: | 7-15 days | Package: | Wooden case |
| Điểm nổi bật: | Poclain Replace Hydraulic Drive Motor,25 Mpa Hydraulic Drive Motor,Modular Hydraulic Drive Motor |
||

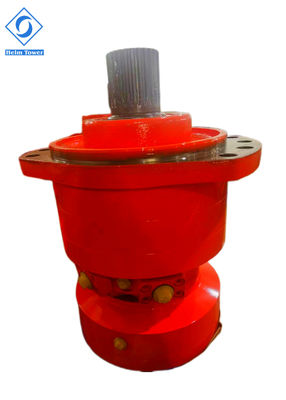

Replace Poclain Hydraulic Drive Motor MS11 For Agriculture Machinery
Product Features:
MS11 Hydraulic Motor for Sales:
1). Radial piston type.
2). Adopt Imported Bearing and Oil Seal, etc.
3). Modular design, High efficiency, High pressure and smooth running even at very low speeds.
4). Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.
Applications:
Construction Machinery: Beam Carrier/Hoisting Machine, Cement Concrete Mixing Station, Cinder, Belt Conveyor.
Farming Machinery: Spray Machine.
Mining Machinery: Mini Road Header, Scraper, Heavy Duty Handling Car, Coal Mine Drill.
Marine Machinery: Marine Deck Crane.
| Type | MS11-8 | MS11-9 | MS11-0 | MS11-1 | MS11-2 | |||||
| Displacement(ml/r) | Full | Semi | Full | Semi | Full | Semi | Full | Semi | Full | Semi |
| 837 | 418 | 943 | 471 | 1048 | 524 | 1147 | 573 | 1259 | 629 | |
| Max power(kw) | 44 | 29 | 44 | 29 | 44 | 29 | 44 | 29 | 44 | 29 |
| Pressure discrepancy 10MPa Torque (N. m) |
1251 | 613 | 1409 | 391 | 1566 | 768 | 1714 | 840 | 1882 | 922 |
| Rated torque(N. m) | 3127 | 3524 | 3916 | 4286 | 4704 | |||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | |||||
| Max pressure(MPa) | 40 | 40 | 40 | 35 | 35 | |||||
| Rated speed(r/min) | 65 | 65 | 65 | 60 | 60 | |||||
| Speed range(r/min) | 0-160 | 0-160 | 0-160 | 0-150 | 0-150 | |||||
