| Nguồn gốc: | China |
| Hàng hiệu: | Helm Tower |
| Chứng nhận: | ISO9001 |
| Số mô hình: | Poclain MS05 MSE05 |
| Số lượng đặt hàng tối thiểu: | 1 |
|---|---|
| chi tiết đóng gói: | Wooden case |
| Thời gian giao hàng: | 15 working days |
| Điều khoản thanh toán: | T/T, L/C |
| Khả năng cung cấp: | 500 per month |
| Warranty: | 1 year | Color: | Follow customer's requirement |
|---|---|---|---|
| Type: | Hydraulic piston motor | Package: | Wooden case |
| Material: | Steel | Feature: | Low speed high torque |
| Rated speed: | 80-160 r/min | Max.pressure: | 31.5 Mpa |
| Max.torque: | 1050-3300 N.m | Displacement: | 260-820 ml/r |
| Điểm nổi bật: | 31.5 Mpa Hydraulic Radial Piston Motor,Steel Hydraulic Radial Piston Motor,160 R/Min Hydraulic Piston Motor |
||

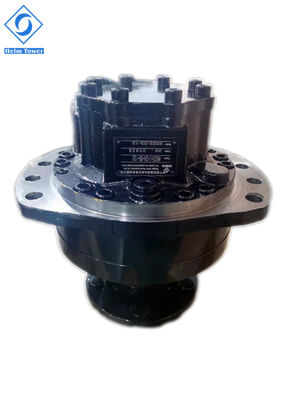

Hydraulic Piston Motor Radial piston motor Black MS05 MSE05 For Heavy Machinery
Hydraulic piston motor
Adopt Imported Bearing and Oil Seal, etc,
Modular design, High efficiency, High pressure and smooth running even at very low speeds,
Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control
|
Type Displacement |
MS05-8 | MS05-9 | MS05-0 | MS05-1 | MS05-2 | |||||
| Full/Semi | Full/Semi | Full/Semi | Full/Semi | Full/Semi | ||||||
| Displacement(ml/r) | 376 | 188 | 468 | 234 | 514 | 257 | 560 | 280 | ||
| Max power(kw) | 25 | 17 | 25 | 17 | 25 | 17 | 25 | 17 | ||
|
Pressure discrepancy 10MPa Torque (N.m) |
562 | 275 | 699 | 343 | 768 | 376 | 837 | 410 | ||
| Rated torque(N.m) | 1405 | 1749 | 1921 | 2092 | ||||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | ||||||
| Max pressure(MPa) | 40 | 40 | 35 | 35 | ||||||
| Rated speed(r/min) | 90 | 90 | 85 | 80 | ||||||
| Speed range(r/min) | 0-200 | 0-200 | 0-190 | 0-180 | ||||||
HMS05 Applications:
Engineering Machinery: Cinder,Skid steer loader, Explosion- proof Forklift,Forklift,Beam Carrier/Hoisting Machine,
Farming Machinery: Mini Farming Vehicle, Combine Harvesters and Cotton Pickers,
Mining Machinery: Scraper,Road Header,Heavy Duty Handling Car,Coal Mine Drill
Special Vehicles: Fire Engine
Our company belongs to Wenkui Group Company, which is a professional manufacturer for hydraulic systems, motors,pumps and parts,including:
Poclain MS series Motors and Parts:MS02,MS05,MS08,MS11,MS18,MS25,MS35,MS50,MS83,MS125
Poclain MK04,MK18,MK23,MK35,MK47
Rexroth Motors and Parts:MCR03,MCR05,MCR10,
Hydraulic drum cutter.HDC05,HDC08,HDC11,HDC18,HDC50..
Rexroth Pumps and Parts:A10VSO,A2F,A2FE,A2FO,A6V,A7V,A4VSO
