| Nguồn gốc: | CHINA |
| Hàng hiệu: | Helm Tower |
| Chứng nhận: | ISO9001 |
| Số mô hình: | MCR10 |
| Số lượng đặt hàng tối thiểu: | 1 |
|---|---|
| Giá bán: | 500usd |
| chi tiết đóng gói: | wooden case |
| Thời gian giao hàng: | 30days |
| Điều khoản thanh toán: | L/C, T/T |
| Khả năng cung cấp: | 450 sets per month |
| Warranty: | 1 year | Color: | Follow customer's requirement |
|---|---|---|---|
| Application: | Mining Machinery | Rated Pressure: | 25 |
| Max Pressure: | 31.5 | Max Torque: | 3160~5430 |
| Điểm nổi bật: | Mining Machinery High Torque Hydraulic Motor,Mcr10 Hydraulic Motor,Hydraulic Motor |
||

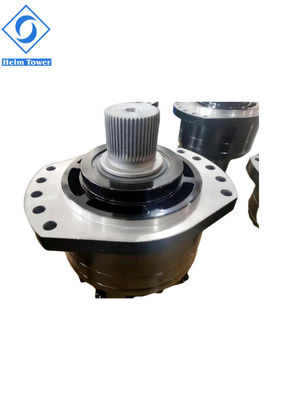

Low Speed High Torque Hydraulic Motor Mcr10 For Mining Machinery
Low Speed High Torque Hydraulic Motor Mcr10 Mcre10 For Mining Machinery
1. Radial piston design.
2. Higher output torques, lower output speed, smoother output speed at low speeds.
3. Optimized and modular design capable of delivering high performance.
4. Highly efficient at any speed or operating pressure.
5. Withstand the most extreme operating conditions and require very little maintenance.
This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.
| Code | HMCR10 | HMCRE10 | ||||
| Displacement Group | 0 | 1 | 2 | 0 | 1 | 2 |
| Displacement(ml/r) | 780 | 860 | 940 | 1120 | 1250 | 1340 |
| Theoretical torque at 10Mpa(N.m) | 1240 | 1367 | 1494 | 1780 | 1987 | 2130 |
| Rated speed(r/min) | 125 | 100 | 100 | 100 | 80 | 80 |
| Rated pressure(Mpa) | 25 | 25 | 25 | 25 | 25 | 25 |
| Rated torque(N.M) | 2560 | 2820 | 3090 | 3680 | 4110 | 4400 |
| Max.pressure(Mpa) | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 |
| Max.torque(N.m) | 3160 | 3480 | 3810 | 4540 | 5060 | 5430 |
| Speed range(r/min) | 0-215 | 0-195 | 0-180 | 0-150 | 0-135 | 0-125 |
| Max.power(kW) | 44 | 44 | 44 | 50 | 50 |
50 |
MCR10 Application:
Mining Machinery: Coal Winning Machine,Road Header,Heavy Duty Handling Car, Coal Mine Drill
Engineering Machinery:Skid Steer Loader,Break Machine
