| Nguồn gốc: | China |
| Hàng hiệu: | Helm Tower Hydraulic |
| Chứng nhận: | ISO9001:2008 |
| Số mô hình: | Poclain MS08 |
| Số lượng đặt hàng tối thiểu: | 1 |
|---|---|
| chi tiết đóng gói: | Wooden case |
| Thời gian giao hàng: | 5 days |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 50 sets per month |
| Warranty: | 1 year | Color: | Follow customer's requirement |
|---|---|---|---|
| Type: | Hydraulic piston motor | Package: | Wooden case |
| Material: | Steel | Feature: | Low speed high torque |
| Rated pressure: | 25 Mpa | Max pressure: | 31.5 Mpa |
| Condition: | New | Application: | Agriculture/Engineering/Coal mining/Marine /Construction Machinery |
| Điểm nổi bật: | DTH Drill Hydraulic Wheel Drive Motor,25Mpa Hydraulic Wheel Motor,HDC08 Drum Cutter Hydraulic Wheel Motor |
||

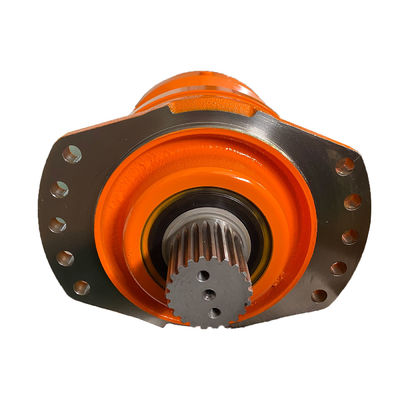

Poclain MS08 MSE08 Hydraulic Piston Shaft Engine Hydraulic Motor
MS08 Hydraulic Piston Motor:
The MS/MSE series motor can be added all kinds of hydraulic valves, mechanical brake, wheel output shaft and other components, motor can make a double displacement, multi-functions collocation can meet the needs of users in various fields.
The MS/MSE hydraulic motor is widely used in shearer, skid steer loaders, DTH drill, rotary drilling ilg, small road header, mixer, cutting machine, heavy duty handling car,cavenging machine, aircraft tractor, beam carrier,hoisting machineport crane,boring machine, scraper, mini farming vehicle, ditcher,heavy-duty truck and coal mine drilling machine.
|
Type Displacement |
MS08-8 | MS08-9 | MS08-0 | MS08-1 | MS08-2 | |||||
| Full/Semi | Full/Semi | Full/Semi | Full/Semi | Full/Semi | ||||||
| Displacement(ml/r) | 627 | 313 | 702 | 351 | 780 | 390 | 857 | 428 | 934 | 467 |
| Max power(kw) | 36 | 24 | 36 | 24 | 36 | 24 | 36 | 24 | 36 | 24 |
|
Pressure discrepancy 10MPa Torque (N.m) |
937 | 459 | 1049 | 514 | 1166 | 571 | 1281 | 628 | 1396 | 684 |
| Rated torque(N.m) | 2343 | 2623 | 2914 | 3202 | 3490 | |||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | |||||
| Max pressure(MPa) | 40 | 40 | 40 | 35 | 35 | |||||
| Rated speed(r/min) | 70 | 70 | 70 | 65 | 65 | |||||
| Speed range(r/min) | 0-170 | 0-170 | 0-170 | 0-155 | 0-140 | |||||
Our company belongs to Wenkui Group Company, which is a professional manufacturer for hydraulic systems, motors,pumps and parts,including:
Poclain MS series Motors and Parts:MS02,MS05,MS08,MS11,MS18,MS25,MS35,MS50,MS83,MS125
Rexroth Motors and Parts:MCR03,MCR05,MCR10,
Hydraulic drum cutter.HDC05,HDC08,HDC11,HDC18,HDC50..
Rexroth Pumps and Parts:A10VSO,A2F,A2FE,A2FO,A6V,A7V,A4VSO,
Người liên hệ: Mr. Helm Tower
Tel: 13567431300
Fax: 86-574-86369630
