| Nguồn gốc: | China |
| Hàng hiệu: | Helm Tower Hydraulic |
| Chứng nhận: | ISO9001:2008 |
| Số mô hình: | Poclain MS08 |
| Số lượng đặt hàng tối thiểu: | 1 |
|---|---|
| chi tiết đóng gói: | Wooden case |
| Thời gian giao hàng: | 5 days |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 50 sets per month |
| Warranty: | 1 year | Color: | Follow customer's requirement |
|---|---|---|---|
| Type: | Hydraulic piston motor | Package: | Wooden case |
| Material: | Steel | Feature: | Low speed high torque |
| Rated pressure: | 25 Mpa | Max pressure: | 31.5 Mpa |
| Condition: | New | Application: | Agriculture/Engineering/Coal mining/Marine /Construction Machinery |
| Điểm nổi bật: | 70r/min Axial Piston Hydraulic Motor,Multi Disc Brake Axial Hydraulic Motor,31.5Mpa Axial Piston Hydraulic Motor |
||

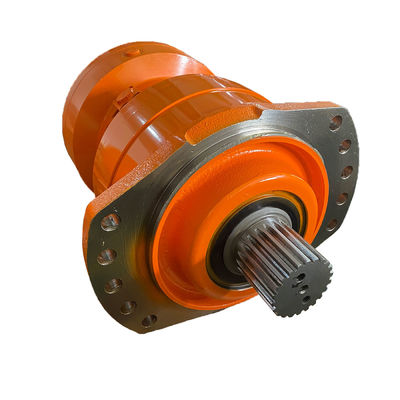

MS08 Hydraulic Piston Motor:
Low speed Large torque Hydraulic motor,
Radial piston type,
Adopt Imported Bearing and Oil Seal,
Modular design, High efficiency, High pressure and smooth running even at very low speeds,
Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.
|
Type Displacement |
MS08-8 | MS08-9 | MS08-0 | MS08-1 | MS08-2 | |||||
| Full/Semi | Full/Semi | Full/Semi | Full/Semi | Full/Semi | ||||||
| Displacement(ml/r) | 627 | 313 | 702 | 351 | 780 | 390 | 857 | 428 | 934 | 467 |
| Max power(kw) | 36 | 24 | 36 | 24 | 36 | 24 | 36 | 24 | 36 | 24 |
|
Pressure discrepancy 10MPa Torque (N.m) |
937 | 459 | 1049 | 514 | 1166 | 571 | 1281 | 628 | 1396 | 684 |
| Rated torque(N.m) | 2343 | 2623 | 2914 | 3202 | 3490 | |||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | |||||
| Max pressure(MPa) | 40 | 40 | 40 | 35 | 35 | |||||
| Rated speed(r/min) | 70 | 70 | 70 | 65 | 65 | |||||
| Speed range(r/min) | 0-170 | 0-170 | 0-170 | 0-155 | 0-140 | |||||
Our company belongs to Wenkui Group Company, which is a professional manufacturer for hydraulic systems, motors,pumps and parts,including:
Japanese IHI vane motor with three series of HVK,HVN,HVL total 10 size which can used in ship crane and port crane.
Poclain MS series Motors and Parts:MS02,MS05,MS08,MS11,MS18,MS25,MS35,MS50,MS83,MS125
Rexroth Motors and Parts:MCR03,MCR05,MCR10,
Hydraulic drum cutter.HDC05,HDC08,HDC11,HDC18,HDC50..
Rexroth Pumps and Parts:A10VSO,A2F,A2FE,A2FO,A6V,A7V,A4VSO,
Danfoss Orbit Motor: OMP,OMR,OMS,OMT,OMV,OMM,
Vickers: PVB,PVQ,PVH,V,Cartridge kits,
Komatsu pumps:705,704series
Daikin pump:V8,V15,V38 etc.
Hydraulic radial piston pump: YCY/MCY/SCY/PCY series ,RK series
Hydraulic Winch, Rexroth GFT,GFB Series Gearbox..
