| MOQ: | 1 set |
| standard packaging: | Wooden case |
| Delivery period: | 15 workdays |
| payment method: | T/T, L/C |
| Supply Capacity: | 100sets per month |

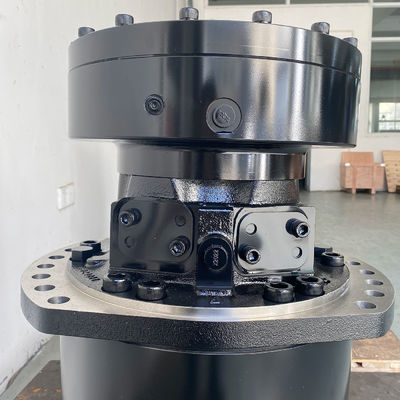

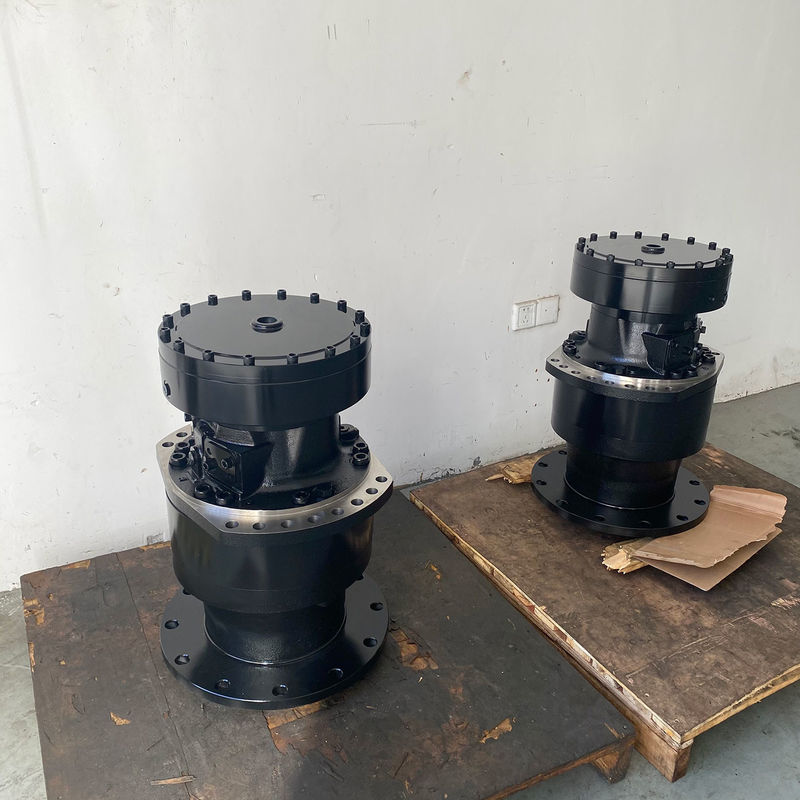

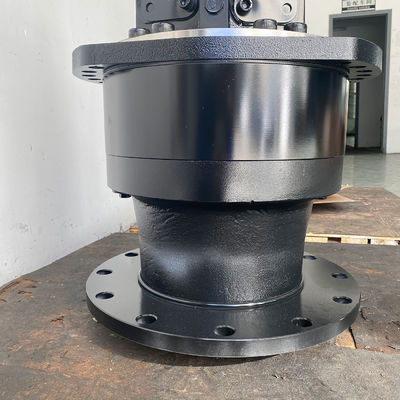

Helm Tower Replace Poclain MS50 Drive Hydraulic Piston Motor
Poclain MS50 Hydraulic Motor Description ( Features )
2). Adopt Imported Bearing and Oil Seal, etc.
3). Modular design, High efficiency, High pressure and smooth running even at very low speeds.
4). Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.
| Displacement Group | 7 | 8 | 0 | 2 |
| Displacement(ml/r) | 3500 | 4008 | 4997 | 6011 |
| Theoretical torque a 10Mpa(N.m) | 5565 | 6373 | 7945 | 9557 |
| Rated speed(r/min) | 80 | 80 | 63 | 50 |
| Rated pressure(Mpa) | 25 | 25 | 25 | 25 |
| Rate torque(N.m) | 11500 | 13150 | 16400 | 19750 |
| Max pressure(Mpa) | 31.5 | 31.5 | 31.5 | 31.5 |
| Max torque(N.m) | 14150 | 16250 | 20250 | 24350 |
| Speed range(r/min) | 0-148 | 0-138 | 0-111 | 0-92 |
| Max power(kW) | standard displacement is 140kw,variable displacement priority rotation 93kw,no priority is 70kw. | |||
Our motor advantages:
1).High performance:our motor performance is very close to Poclain original motors, even sometimes be superior to original motor.
2).100% interchangeable:both complete motor and spare parts, our products could completely replace to Poclain original motors.
3).Reasonable price:our price system has been settled much lower than Poclain original motors.
4).Fast delivery time:most of the spare parts we have inventory, the delivery time keeps within 10 days for regular motor.
5).Excellent aftersales service:we have 12 months' quality warranty, and within warranty time ,all repairment are free of charge.
Application:
Construction Machinery
26T Road Roller(MK series),Forging Manipulator,Bucket Wheel Machine,Raise-Bore Machine
Mining Machinery
Heavy duty handling car,coal mine drill
Marine Machinery
Marine Deck Crane, Gantry Crane Equipment.
For instance:
- BELL 220A Telelogger
- HAMM 4011 Road Roller
- BOMAG 211 Soil compactor
- BOMAG 130 AD Road Roller
- BOMAG Roller BW213 D2
- Carterpillar 226B
|
|
