| Place of Origin: | CHINA |
| Hàng hiệu: | Helm Tower Hydraulic |
| Chứng nhận: | ISO9001 |
| Model Number: | MCR10 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | wooden case |
| Delivery Time: | 10days |
| Payment Terms: | L/C |
| Supply Ability: | 450 sets per month |
| Warranty: | 1 year | Color: | Follow customer's requirement |
|---|---|---|---|
| Application: | Machinery | Pressure: | High Pressure |
| Delivery time: | 5-7 days | Package: | Wooden case |
| Làm nổi bật: | radial piston hydraulic motor,axial piston hydraulic motor |
||

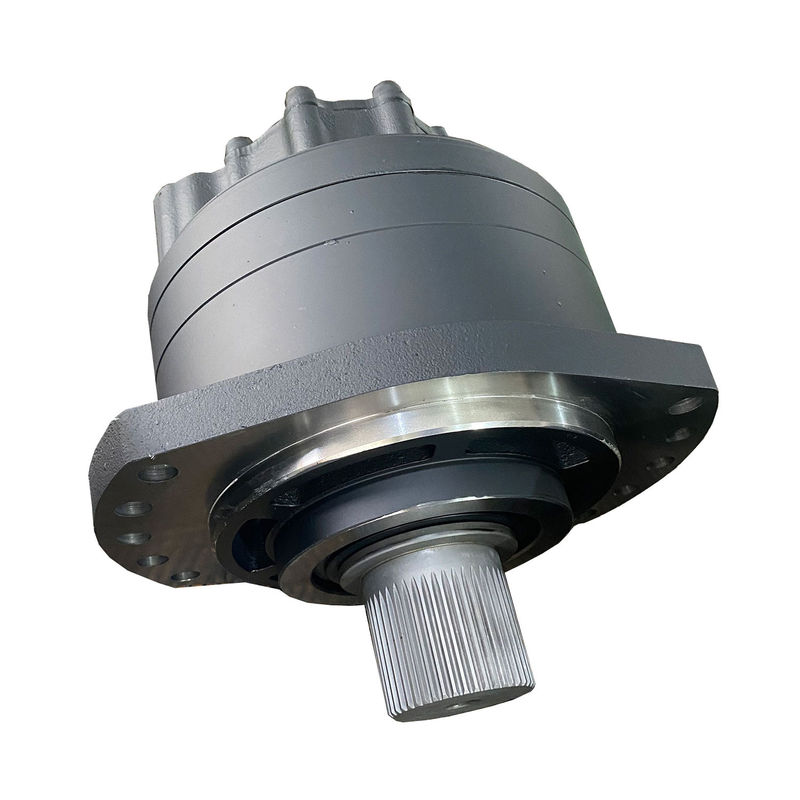

Rexroth MCR10 Hydraulic Motor Final Drive Motor for Skid Steer Loader
1. Radial piston design.
2. Higher output torques, lower output speed, smoother output speed at low speeds.
3. Optimized and modular design capable of delivering high performance.
4. Highly efficient at any speed or operating pressure.
5. Withstand the most extreme operating conditions and require very little maintenance.
| Code | HMCR10 | HMCRE10 | ||||
| Displacement Group | 0 | 1 | 2 | 0 | 1 | 2 |
| Displacement(ml/r) | 780 | 860 | 940 | 1120 | 1250 | 1340 |
| Theoretical torque at 10Mpa(N.m) | 1240 | 1367 | 1494 | 1780 | 1987 | 2130 |
| Rated speed(r/min) | 125 | 100 | 100 | 100 | 80 | 80 |
| Rated pressure(Mpa) | 25 | 25 | 25 | 25 | 25 | 25 |
| Rated torque(N.M) | 2560 | 2820 | 3090 | 3680 | 4110 | 4400 |
| Max.pressure(Mpa) | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 |
| Max.torque(N.m) | 3160 | 3480 | 3810 | 4540 | 5060 | 5430 |
| Speed range(r/min) | 0-215 | 0-195 | 0-180 | 0-150 | 0-135 | 0-125 |
| Max.power(kW) | 44 | 44 | 44 | 50 | 50 |
50 |
Application:
Mining Machinery: Coal Winning Machine,Road Header,Heavy Duty Handling Car, Coal Mine Drill
Engineering Machinery:Skid Steer Loader,Break Machine
Người liên hệ: Mr. Helm Tower
Tel: 13567431300
Fax: 86-574-86369630
