| Place of Origin: | CHINA |
| Hàng hiệu: | Helm Tower Hydraulic |
| Chứng nhận: | ISO9001 |
| Model Number: | MCR03 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | wooden case |
| Delivery Time: | 10days |
| Payment Terms: | L/C |
| Supply Ability: | 450 sets per month |
| Warranty: | 1 year | Color: | Follow customer's requirement |
|---|---|---|---|
| Application: | Machinery | Pressure: | High Pressure |
| Delivery time: | 5-7 days | Package: | Wooden case |
| Làm nổi bật: | radial piston hydraulic motor,axial piston hydraulic motor |
||

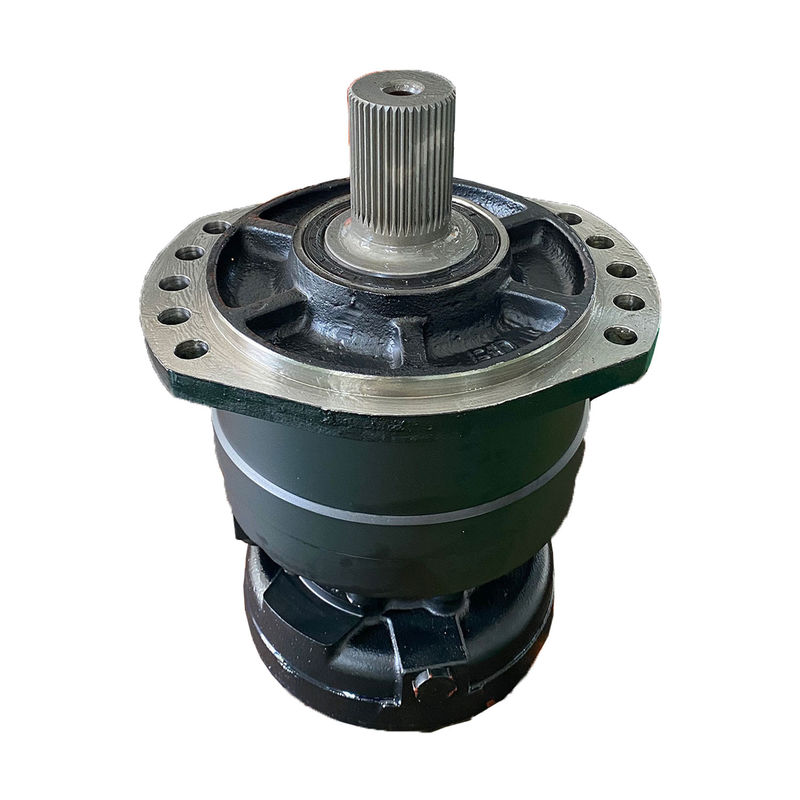

MCR03/MCRE03 Rexroth hydraulic radial piston motor for Caterpillar 216B 226B Final Drive motor skid steer loader
| Type | MCR03-225 | MCR03-255 | MCR03-280 | MCR03-325 | MCR03-365 | MCR03-400 | ||||||
| Displacement(ml/r) | Full | Semi | Full | Semi | Full | Semi | Full | Semi | Full | Semi | Full | Semi |
| 255 | 125 | 255 | 125 | 280 | 140 | 325 | 160 | 365 | 180 | 400 | 200 | |
| Max power(kw) | 18 | 12 | 18 | 12 | 18 | 12 | 22 | 14 | 22 | 14 | 22 | 14 |
| Pressure discrepancy 10MPa Torque | 405 | 202 | 405 | 202 | 445 | 222 | 517 | 258 | 580 | 290 | 636 | 318 |
| Rated compressor(MPa) | 25 | |||||||||||
|
Max Torque(N.m) (Full displacement) |
1386 | 1570 | 1760 | 1875 | 2105 | 2307 | ||||||
| Max pressure(MPa) | 40 | 40 | 40 | 40 | 40 | 40 | ||||||
| Rated speed (r/min) | 320 | 280 | 260 | 240 | 240 | 240 | ||||||
| Speed range(r/min) | 10-400 | 10-360 | 10-330 | 10-310 | 10-280 | 10-260 | ||||||
| Application |
Mining Machinery: Coal Winning Machine, Road Header,Scraper,Heavy Duty Handling Car,Coal Mine Drill Engineering Machinery: Skid Steer Loader,Down-the-hole Drill,Rotary Drill,Mini and Midi Excavators,Mixer Truck, Cutting Machine Marine Machinery: Gantry Crane |
|||||||||||
Automatic production line
