| Nguồn gốc: | Ningbo |
| Hàng hiệu: | Helm Tower |
| Chứng nhận: | ISO 9001 |
| Số mô hình: | MS18 |
| Số lượng đặt hàng tối thiểu: | Negotiation |
|---|---|
| Giá bán: | Negotiable |
| chi tiết đóng gói: | Standard Export Wooden Case |
| Thời gian giao hàng: | 7-15 working days |
| Điều khoản thanh toán: | L/C, T/T |
| Khả năng cung cấp: | 1000 units per month |
| Type: | piston motor | Color: | customized |
|---|---|---|---|
| Speed: | 0-100 r/min | Torque: | 8343-8500 N.m |
| Rated pressure: | 25 MPa | Max. pressure: | 31.5 MPa |
| Điểm nổi bật: | radial piston hydraulic motor,axial piston hydraulic motor |
||

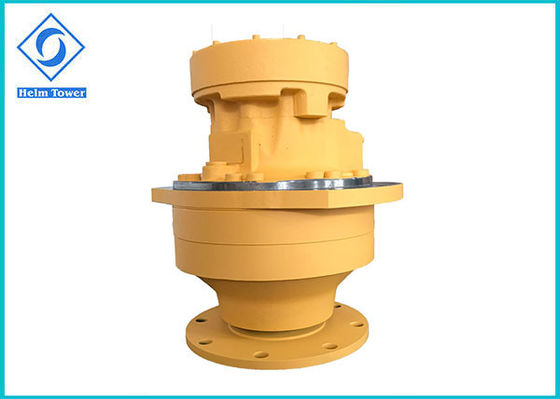

MS18 Radial piston hydraulic motor
Incurve radial piston type hydraulic motor
Could replace Poclain same series hydraulic motor perfectly
Designed in control modules,combine freely
High efficiency,High pressure, low noise
Radial piston,Low speed,High torque
| Type | MS18-8 | MS18-9 | MS18-0 | MS18-1 | MS18-2 | |||||
| Displacement(ml/r) | Full | Semi | Full | Semi | Full | Semi | Full | Semi | Full | Semi |
| 1395 | 697 | 1571 | 785 | 1747 | 873 | 1911 | 955 | 2099 | 1049 | |
| Max power(kw) | 62 | 42 | 62 | 42 | 62 | 42 | 62 | 42 | 62 | 42 |
|
Pressure discrepancy 10MPa Torque (N. m) |
2085 | 1022 | 2348 | 1151 | 2611 | 1279 | 2856 | 1400 | 3137 | 1537 |
| Rated torque(N. m) | 5212 | 5870 | 6528 | 7140 | 7843 | |||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | |||||
| Max pressure(MPa) | 40 | 40 | 40 | 35 | 35 | |||||
| Rated speed(r/min) | 55 | 55 | 55 | 55 | 50 | |||||
| Speed range(r/min) | 0-150 | 0-150 | 0-150 | 0-135 | 0-125 | |||||
Applications:
Consturction Machinery: Backhoe Loader, Explosion - Proof Fprklift, Forklift
Mining Machinery: Mini Road Header, Heavy Duty Handing Car, Coal Mine Drill
Marine Machinery: Wildlass, Crane
