| Nguồn gốc: | Ningbo China |
| Hàng hiệu: | Helm Tower |
| Số lượng đặt hàng tối thiểu: | Negotiation |
|---|---|
| Giá bán: | Negotiable |
| chi tiết đóng gói: | Wooden Case |
| Thời gian giao hàng: | 3 days |
| Điều khoản thanh toán: | L/C, T/T, Western Union |
| Khả năng cung cấp: | 5000 pieces per month |
| Chứng nhận: | ISO9001 | Số mô hình: | A10V(S)O 16/28/45/71/100/140 |
|---|---|---|---|
| Package: | Wooden Case | Warranty: | 1 Year |
| Product name: | Hydraulic piston pump | Power: | Hydraulic |
| Speed: | High Speed | Usage: | Construction Machinery |
| Color: | According to customer demand | piston pump: | Rexroth piston pump |
| MOQ: | 1 Set | port: | ningbo,shanghai,qingdao... |
| Điểm nổi bật: | axial piston pump,radial piston pump |
||

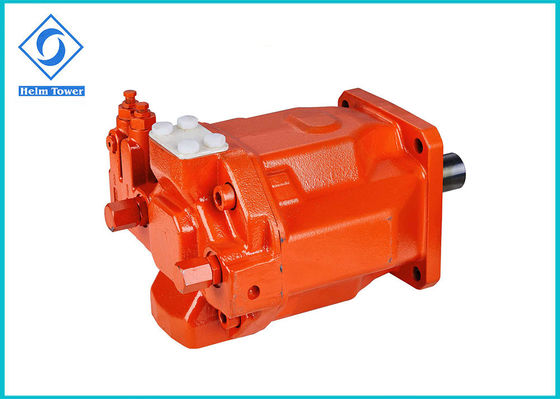

Bosch rexroth brand a10v a10vso a10v028 a10vo28 a10vso28 a10v045 a10vo45 a10v071 a10vo71series hydraulic piston pump
Rexroth A10VSO Piston Pump for
A10VSO16,A10VSO18,A10VSO28,A10VSO45,A10VSO71,A10VSO100,A10VSO140:
We supply high interchangeable and new manufacturing Rexroth piston pumps & motors, all of our hydraulic piston pumps & motors are produced in favourable quality as Rexroth but also with competitive prices and short lead time.
The accordance rexroth piston pumps or motors as A2VK, A2F, A2FO, A2FM, A2FE, A6V, A7V, A8V, A10VSO, A11V, A4VSO can be supplied by us.
Specification data:
| Type | A10VSO16 | A10VSO18 | A10VSO28 | A10VSO45 | A10VSO71 | A10VSO100 | A10VSO140 | |||
| Sizes | 18 | 18 | 28 | 45 | 71 | 100 | 140 | |||
| Displacement | Vg max | cm3 | 18 | 18 | 28 | 45 | 71 | 100 | 140 | |
| Max speed | nmax | rpm | 3300 | 3300 | 3000 | 2600 | 2200 | 2000 | 1800 | |
| Max. flow | In nmax | qv | L/min | 59.4 | 59.4 | 84 | 117 | 156 | 200 | 252 |
| in 1500 r/min | 27 | 27 | 42 | 68 | 107 | 150 | 210 | |||
| (¦¤p=280bar) | in nmax | Pmax | Kw | 27.7 | 27.7 | 39 | 55 | 73 | 93 | 118 |
| Max. power | in 1500 r/min | 12.6 | 12.6 | 20 | 32 | 50 | 70 | 98 | ||
| (¦¤p=280bar) | in Vg max | Tmax | Nm | 80.1 | 80.1 | 125 | 200 | 316 | 445 | 623 |
| Max. torque | ||||||||||
| Weight | m | Kg | 12 | 12 | 15 | 21 | 33 | 45 | 60 | |
