| Nguồn gốc: | Ningbo China |
| Hàng hiệu: | Helm Tower |
| Số lượng đặt hàng tối thiểu: | Negotiation |
|---|---|
| Giá bán: | Negotiable |
| chi tiết đóng gói: | Wooden Case |
| Thời gian giao hàng: | 3 days |
| Điều khoản thanh toán: | L/C, T/T, Western Union |
| Khả năng cung cấp: | 5000 pieces per month |
| Chứng nhận: | ISO9001 | Số mô hình: | A10V(S)O 16/28/45/71/100/140 |
|---|---|---|---|
| Package: | Wooden Case | Warranty: | 1 Year |
| Product name: | Hydraulic piston pump | Power: | Hydraulic |
| Speed: | High Speed | Usage: | Construction Machinery |
| Color: | According to customer demand | piston pump: | Rexroth piston pump |
| MOQ: | 1 Set | ||
| Điểm nổi bật: | axial piston pump,radial piston pump |
||

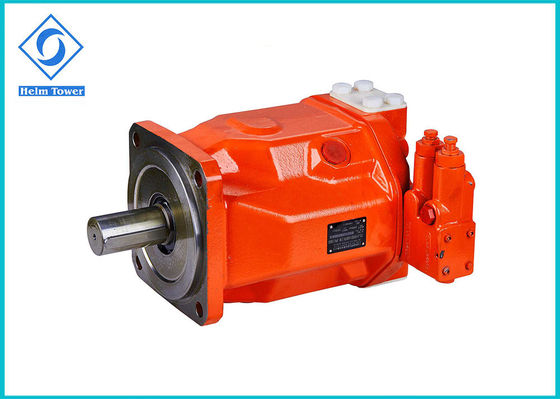

Chinese Rexroth Hydraulic Motor A10V G28/45/71 Wholesale factory
Application & Features---------------------------------------------------------------
The A10VSO range of variable displacement piston pump is designed for use in open circuit,hydraulic system, and comes with swash plate design. proportional to the drive speed and displacement, the flow can be smootly adjusted by regulating the swash plate position.
Following are the design and performance, advantage of this product.1.The product supports ISO or SAE flange mounting and also support UNC thread system.2.It has two drainage ports on the housing , and superior suction performance.
Specification data:
| Type | A10VSO16 | A10VSO18 | A10VSO28 | A10VSO45 | A10VSO71 | A10VSO100 | A10VSO140 | |||
| Sizes | 18 | 18 | 28 | 45 | 71 | 100 | 140 | |||
| Displacement | Vg max | cm3 | 18 | 18 | 28 | 45 | 71 | 100 | 140 | |
| Max speed | nmax | rpm | 3300 | 3300 | 3000 | 2600 | 2200 | 2000 | 1800 | |
| Max. flow | In nmax | qv | L/min | 59.4 | 59.4 | 84 | 117 | 156 | 200 | 252 |
| in 1500 r/min | 27 | 27 | 42 | 68 | 107 | 150 | 210 | |||
| (¦¤p=280bar) | in nmax | Pmax | Kw | 27.7 | 27.7 | 39 | 55 | 73 | 93 | 118 |
| Max. power | in 1500 r/min | 12.6 | 12.6 | 20 | 32 | 50 | 70 | 98 | ||
| (¦¤p=280bar) | in Vg max | Tmax | Nm | 80.1 | 80.1 | 125 | 200 | 316 | 445 | 623 |
| Max. torque | ||||||||||
| Weight | m | Kg | 12 | 12 | 15 | 21 | 33 | 45 | 60 | |
