| Nguồn gốc: | Ningbo |
| Hàng hiệu: | Helm Tower |
| Chứng nhận: | ISO 9001 |
| Số mô hình: | MS08/MSE08 |
| Số lượng đặt hàng tối thiểu: | Negotiation |
|---|---|
| Giá bán: | Negotiable |
| chi tiết đóng gói: | Standard Export Wooden Case |
| Thời gian giao hàng: | 7-15 working days |
| Điều khoản thanh toán: | L/C, T/T |
| Khả năng cung cấp: | 1000 units per month |
| Type: | piston motor | Speed: | 0-130 r/min |
|---|---|---|---|
| Torque: | 3400-4100 N.m | Rated pressure: | 25 MPa |
| Max. pressure: | 40 MPa | Color: | Yellow, Blue, Black, Orange... |
| Điểm nổi bật: | radial hydraulic motor,low speed hydraulic motor |
||

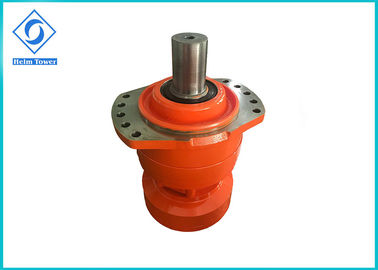

Hydraulic Motor Poclain Ms08 for Road Roller
Features:
MS08/MSE08 series hydraulic motor:
This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.
It is widely applied in Construction Machinery( skid steer loader,down-the-hole drill,rotary drill,mini and midi excavator,mixer truck, cutting machine), Mining Machinery(road header, scraper, heavy duty handing car, coal mine drill), Marine Machinery(gantry crane), etc.
MS08 Displacement Diagram
|
Type Displacement |
MS08-8 | MS08-9 | MS08-0 | MS08-1 | MS08-2 | |||||
| Full/Semi | Full/Semi | Full/Semi | Full/Semi | Full/Semi | ||||||
| Displacement(ml/r) | 627 | 313 | 702 | 351 | 780 | 390 | 857 | 428 | 934 | 467 |
| Max power(kw) | 36 | 24 | 36 | 24 | 36 | 24 | 36 | 24 | 36 | 24 |
|
Pressure discrepancy 10MPa Torque (N.m) |
937 | 459 | 1049 | 514 | 1166 | 571 | 1281 | 628 | 1396 | 684 |
| Rated torque(N.m) | 2343 | 2623 | 2914 | 3202 | 3490 | |||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | |||||
| Max pressure(MPa) | 40 | 40 | 40 | 35 | 35 | |||||
| Rated speed(r/min) | 70 | 70 | 70 | 65 | 65 | |||||
| Speed range(r/min) | 0-170 | 0-170 | 0-170 | 0-155 | 0-140 | |||||
Applications:
1.Engineering Machinery: Road Roller, Beam Carrier/Hoisting Machine, Milling Machine, Backhoe loader, Cinder.
2.Farming Machinery: Spray Machine.
3.Mining Machinery: Road Header, Scraper, Heavy Duty Handing Car, Excavator, Coal Mine Drill.
4.Special Vehicles: Fire Engine.
5.Forest Machinery: Stumper, Loader, Forest Felling Machine.
MS08 Connection Dimension
High precision testing facilities and experienced inspectors.
Our advantages:
1).High performance:our motor performance is very close to Poclain original motors, even sometimes be superior to original motor.
2).100% interchangeable:both complete motor and spare parts, our products could completely replace to Poclain original motors.
3).Reasonable price:our price system has been settled much lower than Poclain original motors.
4).Fast delivery time:most of the spare parts we have inventory, the delivery time keeps within 10 days for regular motor.
5).Excellent aftersales service:we have 12 months' quality warranty, and within warranty time ,all repairment are free of charge
Order information:
Complete part number : MS11-0-G21-F12-1120-5J00
