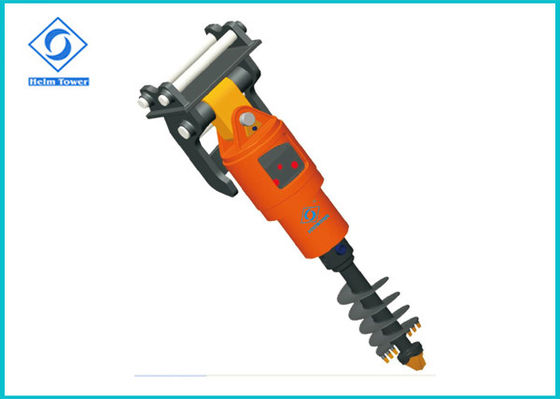

Excavator Parts Hydraulic Earth HF08 HFE18 series Auger Drill teeth
Product Features:
1) Low shake, low noise, low cost.
2) Construction safety, high efficiency, small particle milling dug directly when the backfill.
3) Flexible, according to operating environment, the replacement the different milling dig cutter, milling ditch dug round rock saws disk, etc. Replacement is simple and convenient.
4) Simple installation and maintenance of economic, efficient alternative to the bucket, hammer and other tools, great fun and a strong feeling of power to the new are under construction.
Specifications:
| HF08 | HFE08 | ||
Code | 0 | 2 | 0 | 2 |
Displacement(ml/r) | 780 | 934 | 1043 | 1248 |
Max power(KW) | 41 | 41 | 41 | 41 |
Rated pressure(Mpa) | 25 | 25 | 25 | 25 |
Max pressure(Mpa) | 31.5 | 31.5 | 31.5 | 31.5 |
Rated torqueN.m(25mpa) | 2790 | 3340 | 3730 | 4460 |
Max torque N.m(31.5,pa) | 3510 | 4210 | 4700 | 5620 |
Rated speed(rpm) | 125 | 100 | 80 | 80 |
Max.speed(rpm) | 0-170 | 0-140 | 0-130 | 0-105 |
Height(mm) | 810 | |||
Motor oil port siaze | 1/2''BSP | |||
Outoput shaft | 75 mmSQ | |||
Applications:
Application: Agriculture machine, Milling, Coal mine, Tunnel, Roadway, Channel, Concrete, Rock, Tree root, etc;
