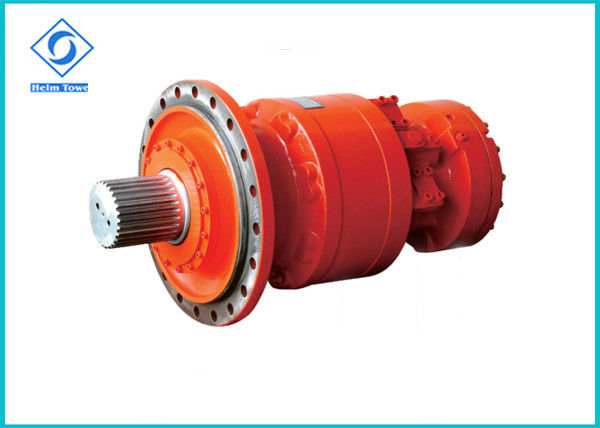

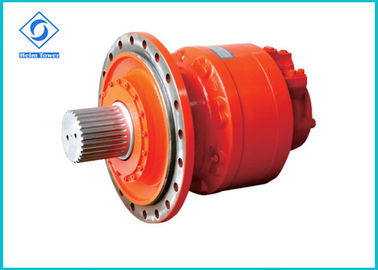

Low - Wear Design Slow Speed MS83 Hydraulic Motors High Mounting Flexibility

Low - Wear Design Slow Speed MS83 Hydraulic Motors High Mounting Flexibility

  • Low - Wear Design Slow Speed MS83 Hydraulic Motors High Mounting Flexibility
  • Low - Wear Design Slow Speed MS83 Hydraulic Motors High Mounting Flexibility
Low - Wear Design Slow Speed MS83 Hydraulic Motors High Mounting Flexibility
Thông tin chi tiết sản phẩm:
Place of Origin: Ningbo
Hàng hiệu: Helm Tower
Chứng nhận: ISO 9001
Model Number: MS83
Thanh toán:
Minimum Order Quantity: Negotiation
Giá bán: negotiable
Packaging Details: Standard Export Wooden Case
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T
Supply Ability: 300 units per month
Tiếp xúc
Chi tiết sản phẩm
Type: piston motor Color: customized
Speed range: 0-65 r/min Torque range: 21700-32550 N. m
Rated pressure: 25MPa Max pressure: 31.5 MPa
Làm nổi bật:

radial piston hydraulic motor

,

axial piston hydraulic motor

Low - Wear Design Slow Speed Hydraulic Motors High Mounting Flexibility



Features:



MS83 HYDRAULIC PISTON MOTOR
1)Radial piston type,low speed,high torque
2)Modular design, High efficiency

3)High pressure and smooth running even at very low speeds.
4)Permissible Radial and Axial load, Motor with multi-disc brake,

5)Controlled by motor displacement,which divided by single-displacement and double-displacement.The single-displacement is complete displacement output,and the double-displacement controlled by valve to carry out the speed by its complete displacement or half displacement output



Displacement diagram:



Displacement Group 8 0 2
Displacement(ml/r) 6679 8328 10019
Theoretical torque a 10Mpa(N.m) 10620 13242 15930
Rated speed(r/min) 63 50 40
Rated pressure(Mpa) 25 25 25
Rate torque(N.m) 21700 27050 32550
Max pressure(Mpa) 31.5 31.5 31.5
Max torque(N.m) 27050 33750 40600
Speed range(r/min) 0-65 0-52 0-43
Max power(kW) standard displacement is 220kw,variable displacement priority rotation 135kw





Applications:



Construction Machinery

Shield Machine, Forging Manipulator,Bucket Wheel Machine,Oil Drilling Equipment

Mining Machinery

Heavy duty handling car,coal mine drill

Marine Machinery

Marine Deck Crane, Gantry Crane Equipment.



Low - Wear Design Slow Speed MS83 Hydraulic Motors High Mounting Flexibility 0Low - Wear Design Slow Speed MS83 Hydraulic Motors High Mounting Flexibility 1



MS83 Connection Dimension





Low - Wear Design Slow Speed MS83 Hydraulic Motors High Mounting Flexibility 2





High precision testing facilities and experienced inspectors.

Low - Wear Design Slow Speed MS83 Hydraulic Motors High Mounting Flexibility 3
