| Nguồn gốc: | China |
| Hàng hiệu: | Helm Tower |
| Chứng nhận: | ISO9001:2008 |
| Số mô hình: | MS/MSE18 |
| Số lượng đặt hàng tối thiểu: | Negotiation |
|---|---|
| Giá bán: | Negotiable |
| chi tiết đóng gói: | wooden or carton case |
| Thời gian giao hàng: | 1-7 days |
| Điều khoản thanh toán: | L/C, T/T,Credit Card |
| Khả năng cung cấp: | 500 pcs/ month |
| Material: | Cast Iron | Size: | 100% same as Poclain originals' |
|---|---|---|---|
| Performance: | replace Poclain originals' very well | Tolerance: | high accuracy |
| Hardness: | 60-62HRC | Using life: | long using life |
| Điểm nổi bật: | poclain hydraulic motor parts,hydraulic pump motor parts,Cast Iron Poclain Hydraulic Motor Parts |
||

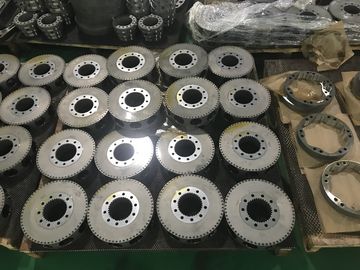

oclain MS18 / MSE18 Hydraulic Motor
| Code | MS | MS | MS | MS | MS | MS | MSE | MSE | MSE |
| Displacement group | 6 | 8 | 9 | 0 | 1 | 2 | 0 | 1 | 2 |
| Displacement(ml/r) | 1091 | 1395 | 1571 | 1747 | 1911 | 2099 | 2340 | 2560 | 2812 |
| MS18 series parts list | |||
| DESCRIPTION | QTYS | DESCRIPTION | QTYS |
| drive shaft | 1 | rear cover | 1 |
| front cover | 1 | dynamic friction | 19 |
| stator | 1 | static friction | 19 |
| rotor | 1 | checking cylinder | 1 |
| plunger piston | 10 | break plunger | 1 |
| roller | 10 | cover plate | 1 |
| distributor | 1 | brake shaft | 1 |
