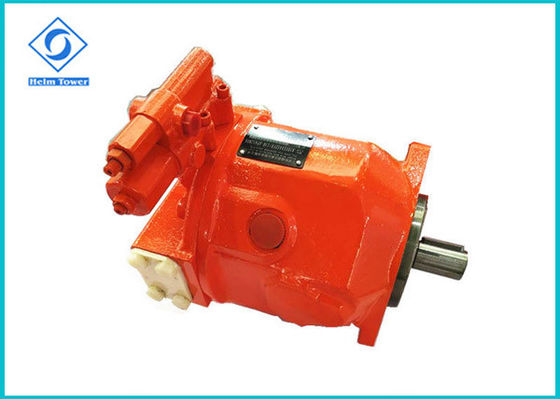

Replace Rexroth A10VO16/28/45/71/100/140 series Hydraulic Pumps
Features:
The A10VSO range of variable displacement piston pump is designed for use in open circuit
hydraulic system, and comes with swash plate design. proportional to the drive speed and displacement, the flow can be smootly adjusted by regulating the swash plate position.
Following are the design and performance, advantage of this product.
1.The product supports ISO or SAE flange mounting and also support UNC thread system.
2.It has two drainage ports on the housing , and superior suction performance.
Specification:
| Model | A10V(S)O16/18 | A10V(S)O28 | A10V(S)O45 | A10V(S)O71 | A10V(S)O100 | A10V(S)O140 |
| Displacement (ml/r) | 18 | 28 | 45 | 71 | 100 | 140 |
| Direction of rotation (view from shaft end) | R: Clockwise L:Counter Clockwise | |||||
| Rated speed (r/min) | 2200 | 2000 | 1500 | 1500 | 1500 | 1500 |
| Max. speed (r/min) | 3300 | 3000 | 2600 | 2200 | 2000 | 1800 |
| Inlet pressure (MPa) | 0.08-3 | |||||
| Rated pressure (MPa) | 28 | |||||
| Max pressure (MPa) | 35 | |||||
| Recommended oil | L-HM46(SUMMER) L-HM32(WINTER) | |||||
| Housing pressure (MPa) | <=0.2 | |||||
| Working mode | open circuit system | |||||
Model Code
