| Nguồn gốc: | Ningbo |
| Hàng hiệu: | Helm Tower |
| Chứng nhận: | ISO 9001 |
| Số mô hình: | MCR05 |
| Số lượng đặt hàng tối thiểu: | Negotiation |
|---|---|
| Giá bán: | Negotiable |
| chi tiết đóng gói: | Standard Export Wooden Case |
| Thời gian giao hàng: | 7-15 working days |
| Điều khoản thanh toán: | L/C, T/T |
| Khả năng cung cấp: | 1000 units per month |
| Type: | piston motor | Color: | customized |
|---|---|---|---|
| Speed: | 0-220 r/min | Torque: | 1419-2802 N.m |
| Rated pressure: | 25 MPa | Max. pressure: | 40 MPa |
| Điểm nổi bật: | hydraulic track drive motor,skid steer hydraulic motor,220 r/min Hydraulic Piston Motor |
||

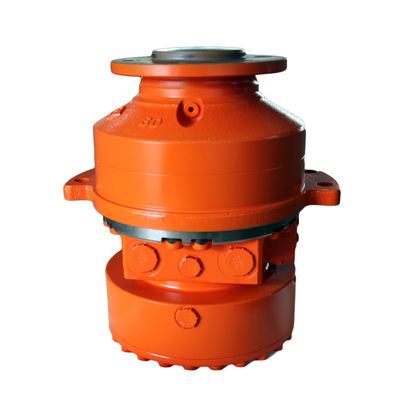

Radial Piston Hydraulic Motor Bobcat T190 Skid Steer Loader
Specifications
Rexroth MCR5 MCR05 series motor with High efficiency, High pressure and smooth running, Permissible Ridial and Axial load
Rexroth MCR5 MCR05 series motor also be called Incurve Multicam Radial-piston
Low Speed High Torque Hydraulic Motor, Which has many features as followed:
1) Modular design
2) High efficiency
3) High pressure and smooth running even at very low speeds
4) Permissible Ridial and Axial load
5) Motor with multi-disc brake (holding brake)
We can provide you
Rexroth MCR3, MCR03, MCR5, MCR05, MCR10 etc.
Poclain MS02, MSE02, MS05, MSE05, MS08, MSE08, MS11, MSE11, MS18, MSE18, MS25, MS35, MS50, MS83, MS125 SERIES motor & related spare parts, repair parts, motor seal kits etc...
The perfomance of our motor as below:
Motor with brake & motor without brake.
Duel speed motor & single speed motor.
Variable displacement motor.
Large torque with low speed.
Otherwise, all of our MS series motors can replace original poclain motor completely.
Moreover, we can warranty the motor quality for 1 year. This means during guantee time, all repairment are free of charge.
| Type | MCR05-380 | MCR05-470 | MCR05-520 | MCR05-565 | MCR05-680 | MCR05-750 |
| Displacement(ml/r) | 380 | 470 | 520 | 565 | 680 | 750 |
| Continuous output power(kw) | 29 | 29 | 29 | 29 | 35 | 35 |
| Differential pressure 10Mpa torque(Nm) | 604 | 748 | 827 | 899 | 1082 | 1194 |
| Rated torque(Nm) | 1419 | 1756 | 1942 | 2111 | 2540 | 2802 |
| Pressure rating(Mpa) | 25 | 25 | 25 | 25 | 25 | 25 |
| Max. pressure(Mpa) | 40 | 40 | 40 | 40 | 40 | 40 |
| Max. speed(rpm) | 220 | 220 | 220 | 220 | 220 | 170 |
Mining Machinery: Coal Winning Machine,Road Header,Heavy Duty Handling Car, Coal Mine Drill
Engineering Machinery:Skid Steer Loader,Break Machine,
MCR05 Connection Dimension
