Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Performance: | 100% Replace to Danfoss motor | Drive Shaft: | spline shaft / key shaft |
|---|---|---|---|
| Speed: | Single speed / double speed | Color: | Black, Grey, Blue, Red, Orange |
| Displacement: | 160 ml/r; 200 ml/r; 250 ml/r; 315 ml/r; 400 ml/r | Model: | OMR OMP BMR |
| Điểm nổi bật: | high power hydraulic motor,hydraulic orbital motors |
||

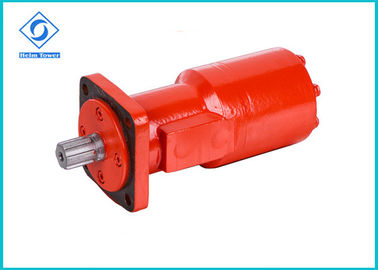

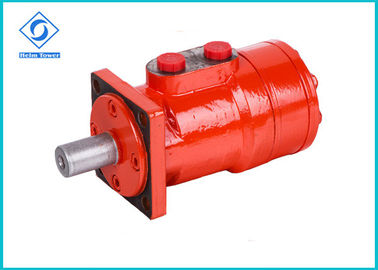

High Power Hydraulic OMR series motor shaft diameter For Agricultural Tractors
Features:
1 Compact in design with spool valving and Geroler
2 Imported high pressure capacity shaft seal
3 Wide variety of mounting flanges, shafts, ports and speed provides design flexibility
4 Direction of shaft rotation and speed can be controlled easily and smoothly
5 Best combination of efficiency and economy in medium duty applications
| Technical parameters for OMR series motor shaft diameter | |||||||||||
| Type | OMR | OMR | OMR | OMR | OMR | OMR | OMR | OMR | OMR | OMR | |
| OMRS | OMRS | OMRS | OMRS | OMRS | OMRS | OMRS | OMRS | OMRS | OMRS | ||
| 36 | SO | 80 | 100 | 125 | 160 | 200 | 2S0 | 3t5 | 375 | ||
| Geometric displacement | 36 | 51.7 | 81.5 | 102 | 127.2 | tS7.2 | 194.5 | 253.5 | 317.5 | 381.4 | |
| Max. speed (rpm) | rated | 1055 | 7S0 | 650 | S20 | 420 | 330 | 265 | 200 | 165 | 135 |
| con.t | 1250 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 | |
| int. | 1520 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque(N.m) | rated | 69 | 100 | 160 | 200 | 250 | 320 | 330 | 352 | 360 | 420 |
| con.t | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 | |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. outqut (kw) | con.t | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | rated | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 11 | 8.5 | 8.5 |
| con.t | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.S | 13 | 11 | 9 | 7 | |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.S | 22.5 | 22.5 | 22.5 | 22.5 | 22.6 | 20 | 17.5 | 15 | |
| Max. flow (Umm) | rated | 40 | 40 | 40 | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| con.t | 45 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | |
| int. | 55 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
