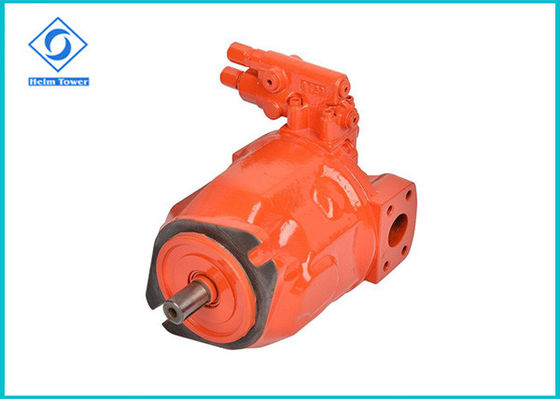

Replace Rexroth A10VSO18/28/45/71/100/140 series Hydraulic Pump

Thông tin chi tiết sản phẩm:

Nguồn gốc:	China
Hàng hiệu:	No brand
Chứng nhận:	ISO9001:2008
Số mô hình:	A10VSO series

Thanh toán:

Số lượng đặt hàng tối thiểu:	Negotiation
Giá bán:	Negotiable
chi tiết đóng gói:	woodern case
Thời gian giao hàng:	7 days
Điều khoản thanh toán:	L/C, T/T
Khả năng cung cấp:	100 set/ month

Tiếp xúc

Chi tiết sản phẩm

Warranty:

1 year

Material:

Iron

Performance:

100% replace originals very well

Color:

customer required

Điểm nổi bật:

radial piston pump

variable displacement piston pump

Replace Rexroth A10VSO18/28/45/71/100/140 series Hydraulic Pump

Features:

The A10VSO range of variable displacement piston pump is designed for use in open circuit
hydraulic system, and comes with swash plate design. proportional to the drive speed and displacement, the flow can be smootly adjusted by regulating the swash plate position.
Following are the design and performance, advantage of this product.
1.The product supports ISO or SAE flange mounting and also support UNC thread system.
2.It has two drainage ports on the housing , and superior suction performance.

Model	A10V(S)O16/18	A10V(S)O28	A10V(S)O45	A10V(S)O71	A10V(S)O100	A10V(S)O140
Displacement (ml/r)	18	28	45	71	100	140
Direction of rotation (view from shaft end)	R: Clockwise L:Counter Clockwise
Rated speed (r/min)	2200	2000	1500	1500	1500	1500
Max. speed (r/min)	3300	3000	2600	2200	2000	1800
Inlet pressure (MPa)	0.08-3
Rated pressure (MPa)	28
Max pressure (MPa)	35
Recommended oil	L-HM46(SUMMER) L-HM32(WINTER)
Housing pressure (MPa)	<=0.2
Working mode	open circuit system
