OMP BMP Orbit Hydraulic Motor Low Speed High Torque 615 Rpm Max Speed

Name: OMP BMP Orbit Hydraulic Motor Low Speed High Torque 615 Rpm Max Speed
Brand: Helm Tower
SKU: OMP BMP
Price: 1.00 USD
Availability: InStock
Rating: 5 (157 reviews)

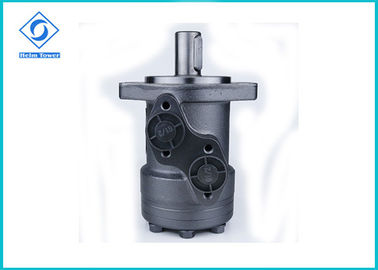

Hình ảnh lớn : OMP BMP Orbit Hydraulic Motor Low Speed High Torque 615 Rpm Max Speed

Thông tin chi tiết sản phẩm:

Nguồn gốc:	China
Hàng hiệu:	Helm Tower
Chứng nhận:	ISO9001
Số mô hình:	OMP BMP

Thanh toán:

Số lượng đặt hàng tối thiểu:	Negotiation
Giá bán:	Negotiable
chi tiết đóng gói:	Export plywood case
Thời gian giao hàng:	5-8 working days
Điều khoản thanh toán:	T/T, L/C
Khả năng cung cấp:	2000pcs per month

Tiếp xúc

Chi tiết sản phẩm

Performance:	100% Replace to Original motor	Drive Shaft:	spline shaft / key shaft
Color:	Black, Grey, Blue, Red, Orange	Displacement:	160 ml/r; 200 ml/r; 250 ml/r; 315 ml/r; 400 ml/r ; 500 ml/r
Material:	Casting Iron	Max. Torque:	227 N.m
Max. Power:	11 Kw	Max. Speed:	615 rpm
Max. Pressure:	14 Mpa	Max. Flow:	60 L/m
Điểm nổi bật:	high power hydraulic motor , drilling rig motors

OMP BMP Orbit Hydraulic Motor Low Speed High Torque 615 Rpm Max Speed

BMP Series Features

1 Compact in design with spool valving and Geroler

2 Imported high pressure capacity shaft seal

3 Wide variety of mounting flanges, shafts, ports and speed provides design flexibility

4 Direction of shaft rotation and speed can be controlled easily and smoothly

5 Best combination of efficiency and economy in medium duty applications

Specification Data
Displacement cc/r		50	63	80	100	125	160	200	250	320	400	500
Flow LPM	Rated	38	45	57	57	57	57	57	57	57	57	57
Flow LPM	Max	45	53	68	68	68	68	68	68	68	68	68
Speed RPM	Rated	698	663	679	558	452	354	284	235	178	145	115
Speed RPM	Max	859	774	811	669	544	425	339	281	208	171	136
Pressure Bar	Rated	124	124	124	124	124	115	110	100	90	90	83
Pressure Bar	Max	138	138	138	138	138	124	124	124	124	110	90
Torque Nm	Rated	73	86	124	154	194	228	285	304	364	466	496
Torque Nm	Max	84	93	139	173	216	261	319	378	403	522	516
Weight	Kg	5	5.3	5.5	6.1	6.2	6.4	6.7	7.1	7.4	7.7	8
