Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Type: | piston motor | Color: | customized |
|---|---|---|---|
| Speed range: | 0-100 r/min | Torque range: | 13077-22463 N. m |
| Rated pressure: | 25MPa | Max pressure: | 40MPa |
| Warranty: | 1 Year | Application: | Agriculture/Engineering/Coal mining/Marine /Construction Machinery |
| Name: | radial piston hydraulic motor | ||
| Điểm nổi bật: | radial piston hydraulic motor,axial piston hydraulic motor,100 r/min Hydraulic Motor |
||

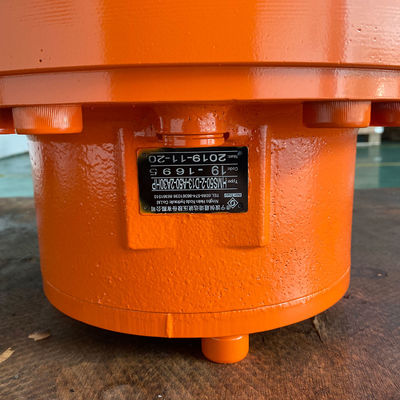

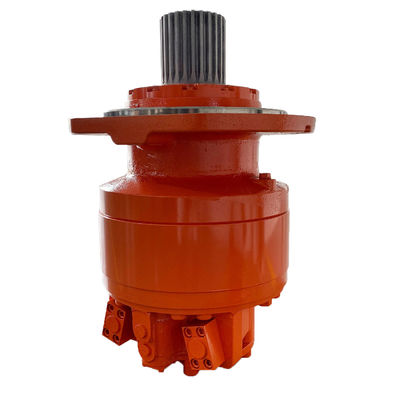

Helm Tower Replace Rexroth MS50 High Pressure Hydraulic Motor
Features:
POCLAIN MS50 Hydraulic Motor:
1). Radial piston type;
2). Adopt Imported Bearing and Oil Seal, etc.
3). Modular design, High efficiency, High pressure and smooth running even at very low speeds.
4). Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.
MS50 Displacement Diagram
| Type | MS50-8 | MS50-9 | MS50-0 | MS50-1 | MS50-2 | |||||
| Displacement(ml/r) | Full | Semi | Full | Semi | Full | Semi | Full | Semi | Full | Semi |
| 3500 | 1750 | 4008 | 2004 | 4996 | 1747 | 6012 | 3006 | |||
| Max power(kw) | 123 | 82 | 123 | 82 | 123 | 65 | 123 | 82 | ||
| Pressure discrepancy 10MPa Torque (N. m) |
5231 | 2562 | 5990 | 2935 | 7467 | 2558 | 8985 | 4402 | ||
| Rated torque(N. m) | 13077 | 14975 | 18667 | 22463 | ||||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | ||||||
| Max pressure(MPa) | 40 | 40 | 40 | 35 | ||||||
| Rated speed(r/min) | 40 | 40 | 40 | 35 | ||||||
| Speed range(r/min) | 0-100 | 0-100 | 0-100 | 0-90 |
||||||
Applications
Construction Machinery: Road Roller, Forging Manipulators, Bucket Wheel Machine.
Marine Machinery: Marine Deck Crane, Gantry Crane Equipment.
Mining Machinery: Heavy Duty Handling Car, Coal Mine Drill.
