Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Chứng nhận: | ISO9001 | Package: | Wooden Case |
|---|---|---|---|
| Warranty: | 1 Year | Product name: | Hydraulic vane pump |
| Power: | Hydraulic | Speed: | High Speed |
| Usage: | Construction Machinery | Color: | According to customer demand |
| Điểm nổi bật: | variable vane hydraulic pump,variable displacement vane pump |
||

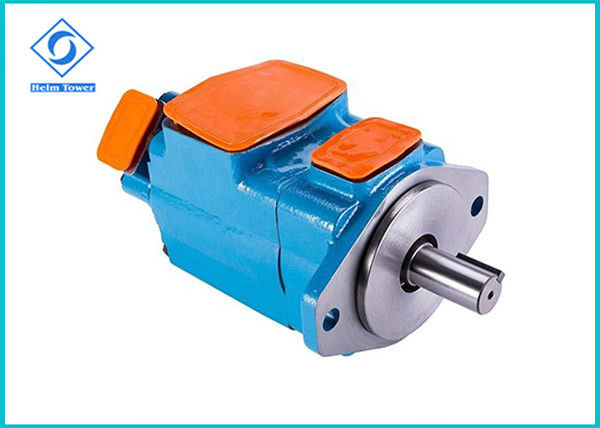

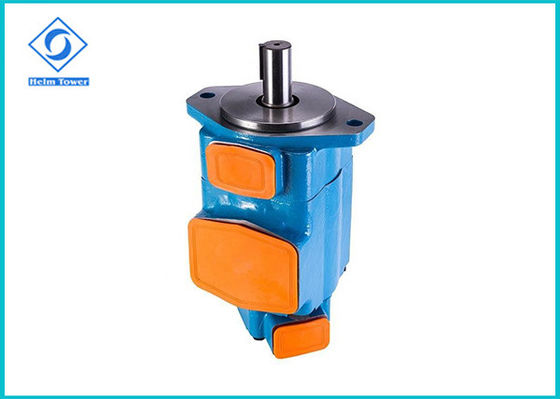

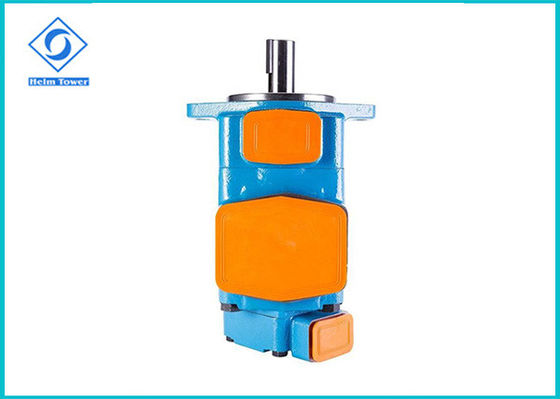

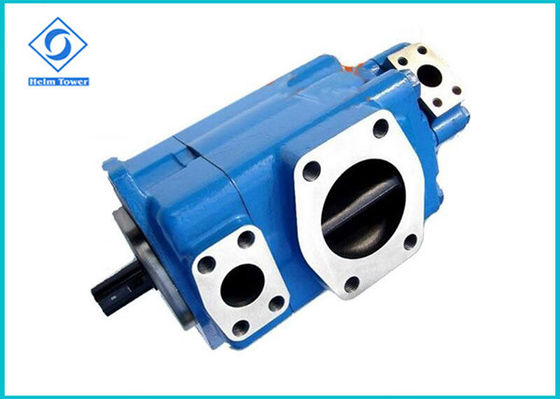

Vickers QP Series Vane Type Hydraulic Pump Double Pump Various Displacements Available
| Series |
Flow code (USgpm) |
Geometric displacement ml/r |
Max.operating pressure Mpa |
Max.speed r/min |
Min. Speed r/min |
| 20V | 2 | 7(0.43) | 21 | 2700 | 600 |
| 3 | 10(0.61) | ||||
| 4 | 13(0.79) | ||||
| 5 | 16.5(1.01) | ||||
| 6 | 19(1.16) | ||||
| 7 | 22(1.40) | ||||
| 8 | 27(1.67) | ||||
| 9 | 30(1.85) | ||||
| 10 | 31.5(1.92) | ||||
| 11 | 35(2.14) | ||||
| 12 | 40(2.44) | 16 | |||
| 14 | 45(2.78) | 14 | |||
| 25V | 10 | 32(1.95) | 21 | 2700 | 600 |
| 12 | 38(2.32) | ||||
| 14 | 43.5(2.65) | ||||
| 15 | 47(2.89) | 2500 | |||
| 17 | 54(3.30) | ||||
| 19 | 60(3.66) | ||||
| 21 | 67(4.13) | ||||
| 25 | 79.2(4.83) | ||||
| 35V | 21 | 67(4.13) | 21 | 2500 | 600 |
| 25 | 81(4.94) | ||||
| 30 | 95(5.80) | ||||
| 32 | 101(6.16) | ||||
| 35 | 109(6.65) | 2400 | |||
| 38 | 119(7.26) | ||||
| 45 | 143(8.72) | 14 |
Appliation:
Our pumps are mainly used for construction machinery, geological drilling equipment, special vehicles,mining machinery, lifting and transporting equipment, cranes, ship machinery, agricultural and forestry machinery, and so on.
Người liên hệ: Mr. Helm Tower
Tel: 13567431300
Fax: 86-574-86369630
